Steps to enable secure Open VPN connection to Reduxi Controller
Enable the Reduxi support team to connect to your Reduxi Controller over a secure Open VPN connection.
1 Requirements
1.1 Internet access
To allow remote access to the Reduxi Controller, first enable internet access. Follow the article What steps are required to enable internet access to Reduxi Controller.
1.2 Firewall rule
Add or edit a firewall rule that allows the Open VPN connection:
| Parameter | Value |
|---|---|
| IP | 193.9.21.21 |
| Protocol and port | TCP port 2002
|
For more information about firewall rules, read Reduxi Firewall rules.
2 Get the VPN configuration file
2.1 Request the configuration file
Obtain the VPN configuration file first. Some Reduxi Controllers are already installed with a VPN configuration, depending on the agreement. In this case, skip this step.
To get the VPN configuration for your Reduxi Controller, write to support@reduxi.eu.

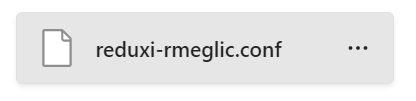

Text description of this image
Screenshot of a file entry in a file list: a grey rounded box with a document icon on the left, the file name reduxi-rmeglic.conf, and a three-dot menu icon on the right.
3 Enter the configuration
3.1 Paste the configuration
Open the configuration file with Notepad or any other text editor. Copy the content and paste it into the Reduxi Open VPN Config field.

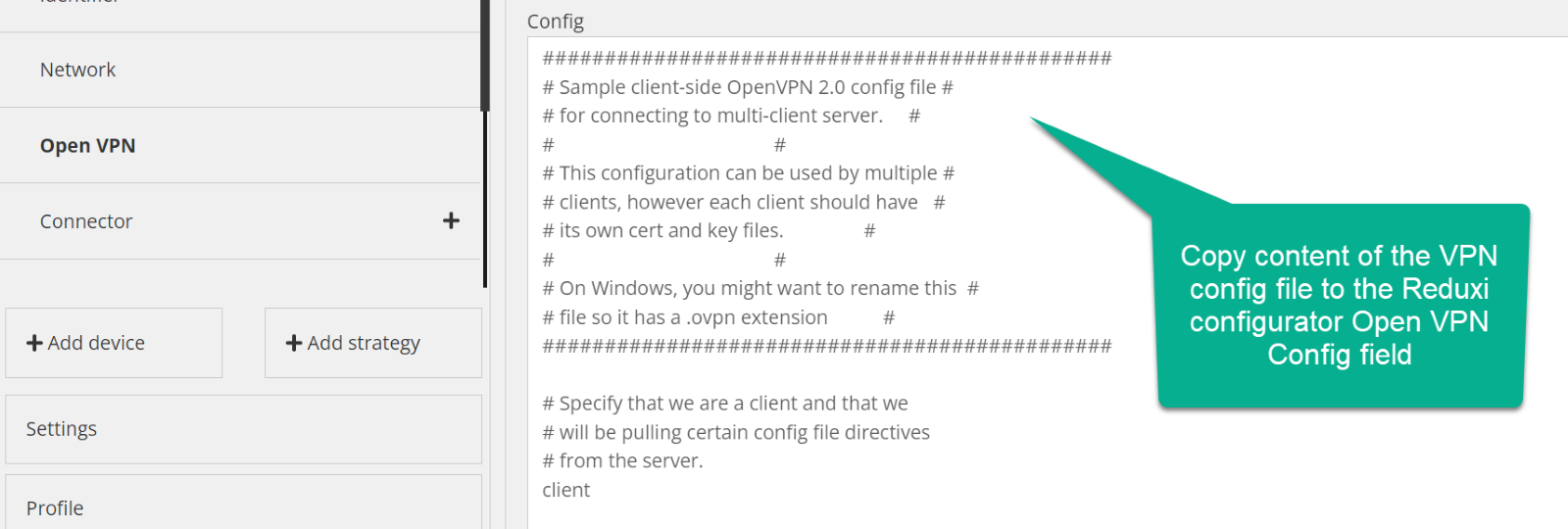

Text description of this image
Screenshot of the Reduxi Configurator, page Open VPN (cropped). Left menu part visible: Network, Open VPN (highlighted), Connector (with plus), buttons Add device and Add strategy, Settings, Profile. On the right, field Config contains a pasted OpenVPN sample text beginning with: # Sample client-side OpenVPN 2.0 config file # for connecting to multi-client server. # This configuration can be used by multiple # clients, however each client should have # its own cert and key files. # On Windows, you might want to rename this # file so it has a .ovpn extension. Further down: # Specify that we are a client and that we will be pulling certain config file directives from the server. client. A green callout box with an arrow pointing to the Config text reads: Copy content of the VPN config file to the Reduxi configurator Open VPN Config field.
4 Check the VPN connection
4.1 Check the status
After you paste the configuration, check whether the VPN connection works. The two screenshots show both states:

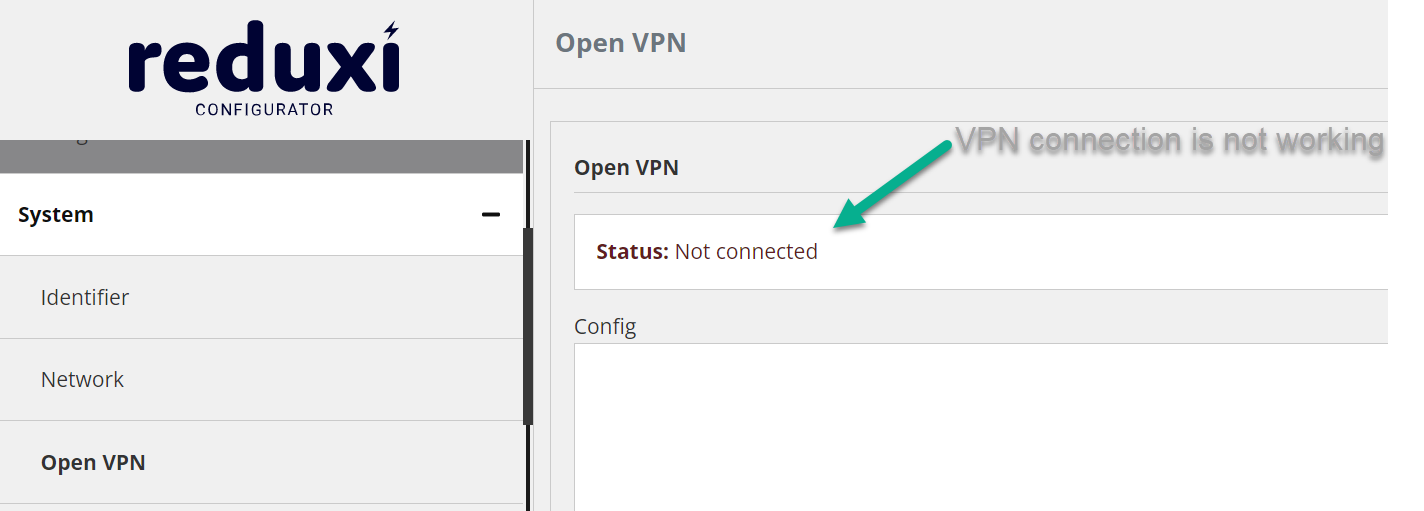

Text description of this image
Screenshot of the Reduxi Configurator, page Open VPN. Reduxi Configurator logo at top left. Left menu: System (expanded, with minus), Identifier, Network, Open VPN (highlighted). Box Open VPN: Status: Not connected (Status in bold, Not connected in red-brown text). Below it the heading Config with an empty area. A green arrow points to the status line, with grey text VPN connection is not working.

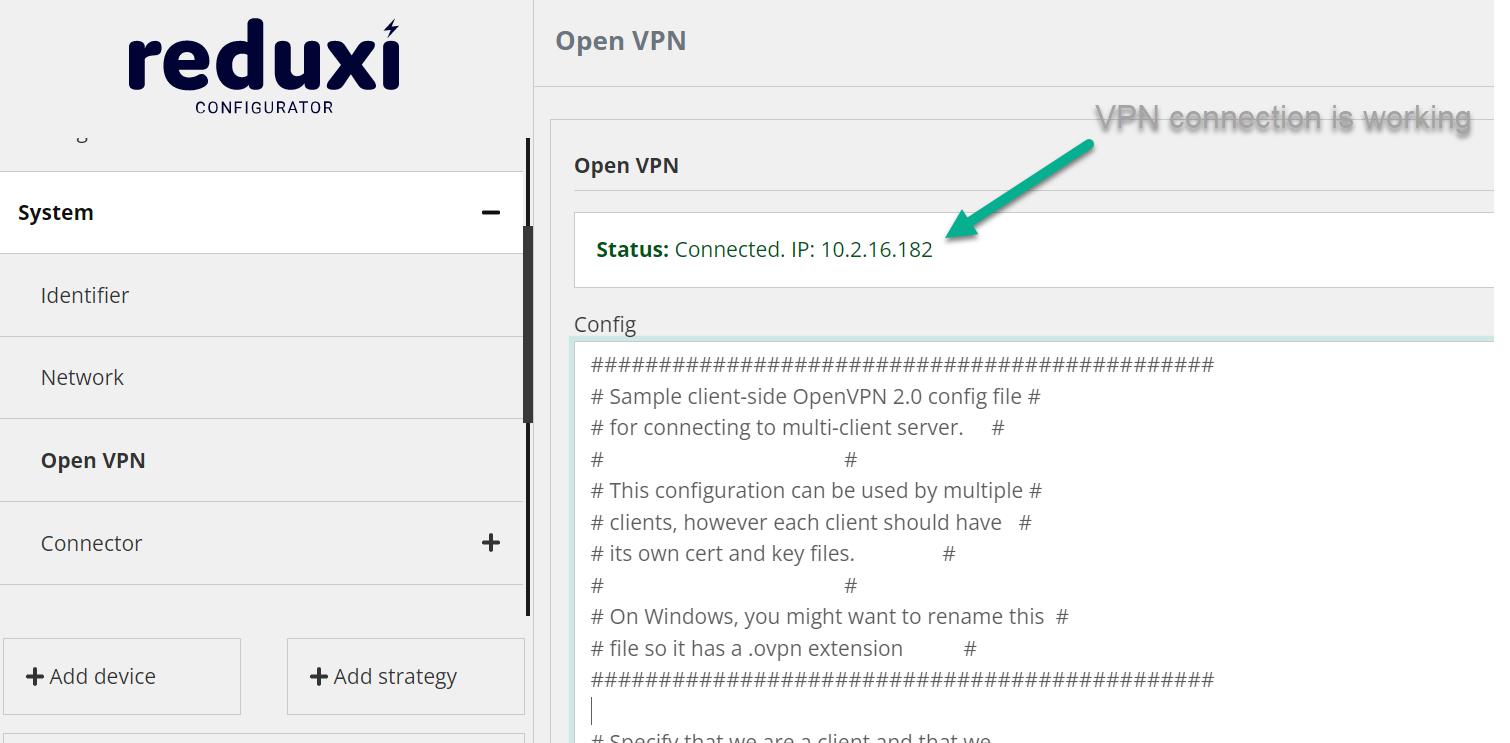

Text description of this image
Screenshot of the Reduxi Configurator, page Open VPN. Reduxi Configurator logo at top left. Left menu: System (expanded, with minus), Identifier, Network, Open VPN (highlighted), Connector (with plus); buttons Add device and Add strategy. Box Open VPN: Status: Connected. IP: 10.2.16.182 (Status in bold, text in green). A green arrow points to the status line, with grey text VPN connection is working. Below, field Config contains the OpenVPN sample text beginning: # Sample client-side OpenVPN 2.0 config file # for connecting to multi-client server.
When the connection is set up, the Reduxi support team can connect to the Reduxi Controller over a secure VPN connection.
5 Disable the Open VPN connection
5.1 Disable the connection
To disable the Open VPN connection, do one of the following:
- Delete the content of the Reduxi Open VPN Config field.
- Configure the firewall rules to block the Open VPN connection.
The status of the Open VPN connection then shows Not connected.

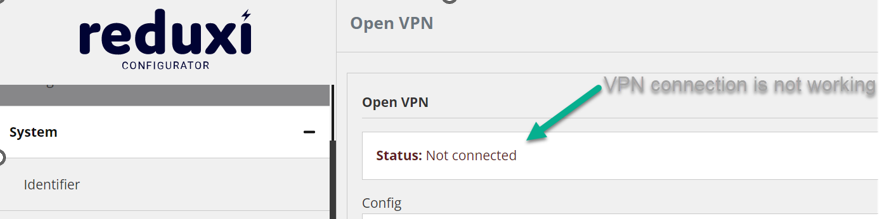

Text description of this image
Screenshot of the Reduxi Configurator, page Open VPN (cropped at the top and right edge). Left menu shows System (expanded, with minus) and Identifier. Reduxi Configurator logo at top left. Box Open VPN: Status: Not connected (Status in bold, Not connected in red-brown text). Below it the heading Config. A green arrow points to the status line. Grey text next to the arrow: VPN connection is not working (cut off at the right edge).
✓ Summary
Requirements (Point 1): Enable internet access. Allow the Open VPN connection in the firewall for IP 193.9.21.21 and TCP port 2002.
Configuration (Points 2–3): Get the VPN configuration file from support@reduxi.eu, unless it is already installed. Paste it into the Reduxi Open VPN Config field.
Check (Point 4): Check that the VPN connection works. Then Reduxi support can connect securely.
Disable (Point 5): Delete the Reduxi Open VPN Config field or block the connection in the firewall. The status shows Not connected.
→ Common issues
| Issue | Solution |
|---|---|
| VPN connection is not working | Check the firewall rule for IP 193.9.21.21 and TCP port 2002. Check that the configuration is pasted completely into the Reduxi Open VPN Config field. |
| No VPN configuration file | Write to support@reduxi.eu to get the VPN configuration for your Reduxi Controller. |
