How to configure Landis+Gyr E350 or E450 or ZMY410 in the MAP120 tool

To configure the Landis+Gyr E350 or E450 or ZMY410 meter, use the following basic structure Reduxi standard telegram structure for Landis+Gyr E350/E450 DLMS push on I1, and configure the meter in Landis+Gypr Landis+Gyr MAP tool.

We need only one telegram with data defined in the Reduxi standard telegram structure for Landis+Gyr E350/E450 DLMS push on I1.

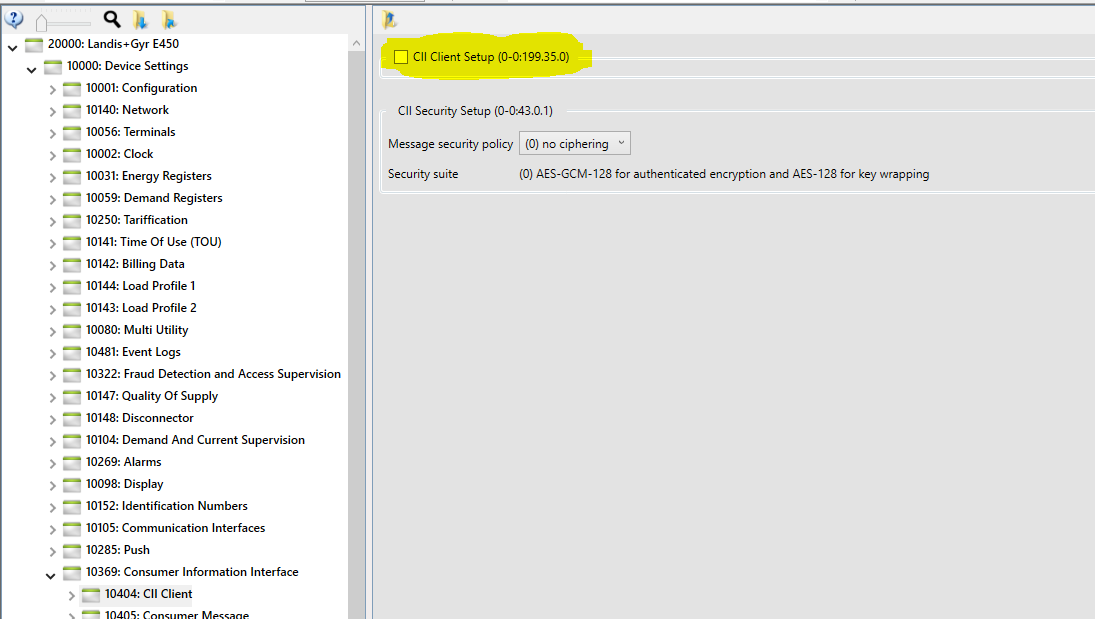

1. Enable CII Client Setup:

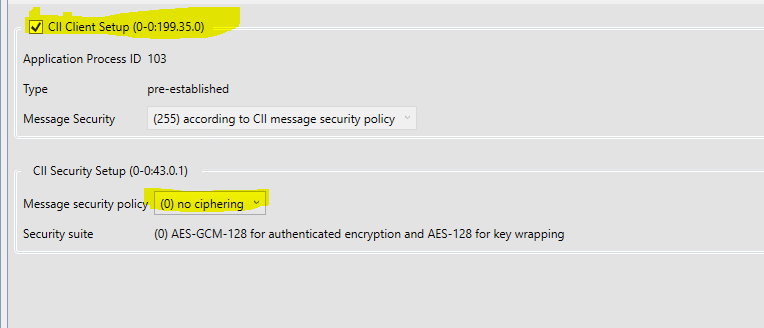

2. When you enable CII Client Setup, you need to select "no ciphering":

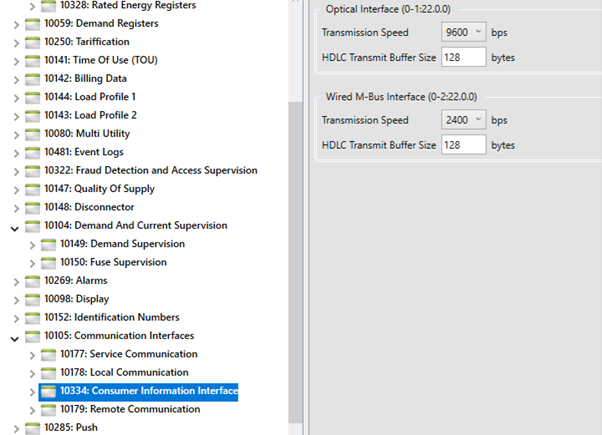

3. Customer Information Interface:

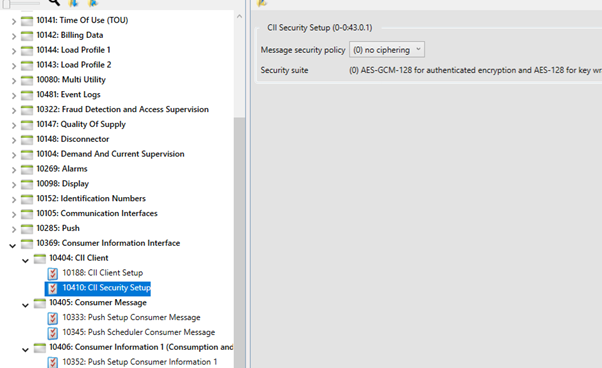

4. Customer Information Interface: CII Security Setup

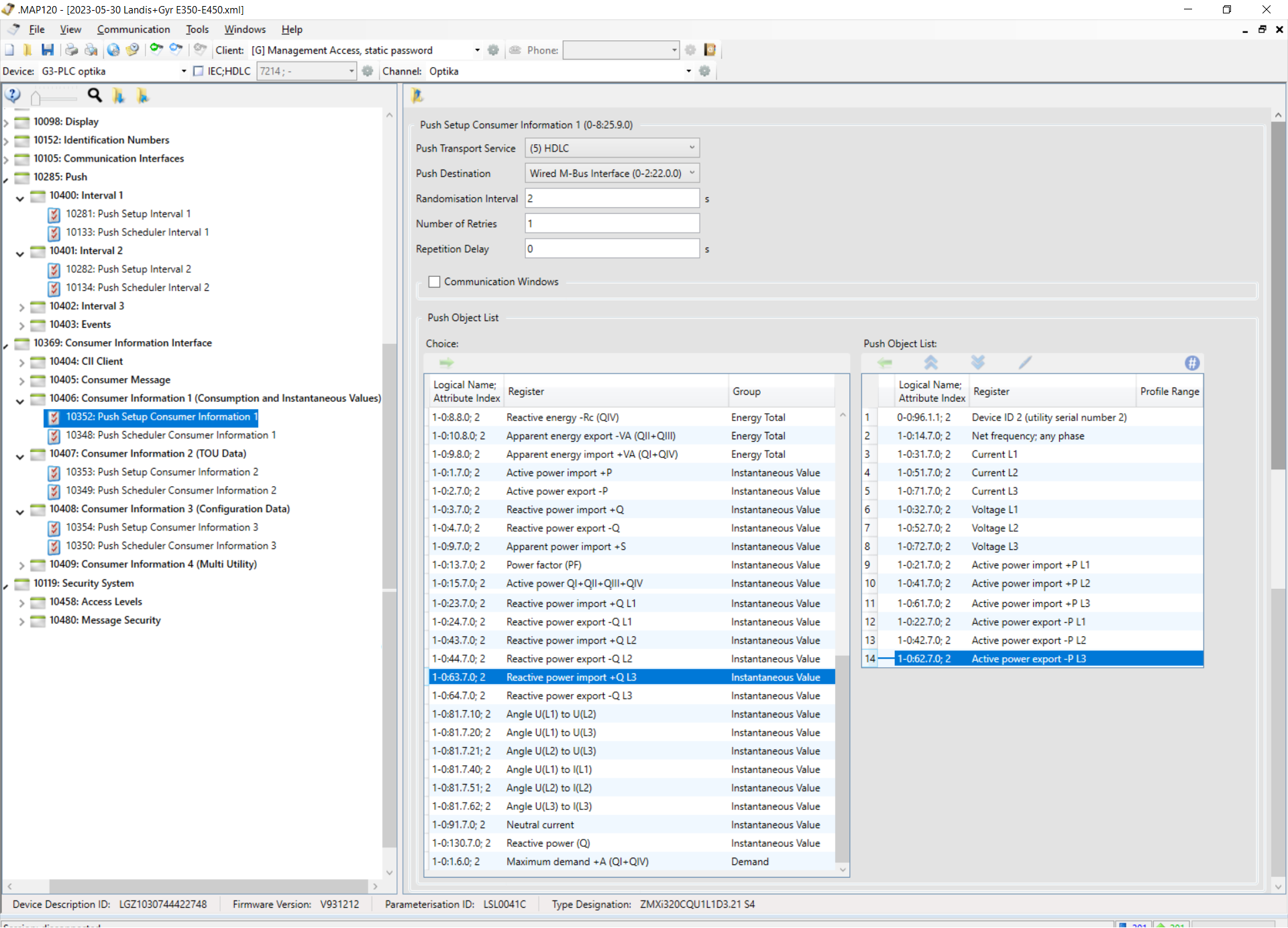

5. Push Setup Consumer Information 1 (WARNING! The order must be the same as in the picture below!)

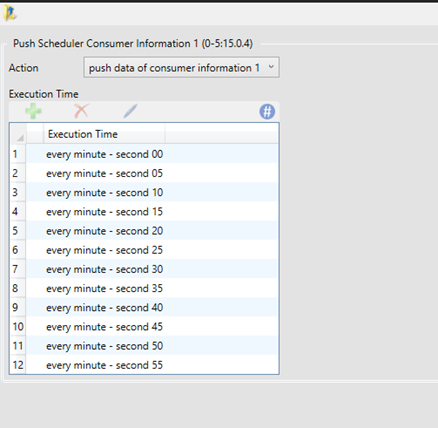

6. Push Scheduler Consumer Information 1
7. Push Setup Consumer Information 2 (WARNING! The order must be the same as in the picture below!)

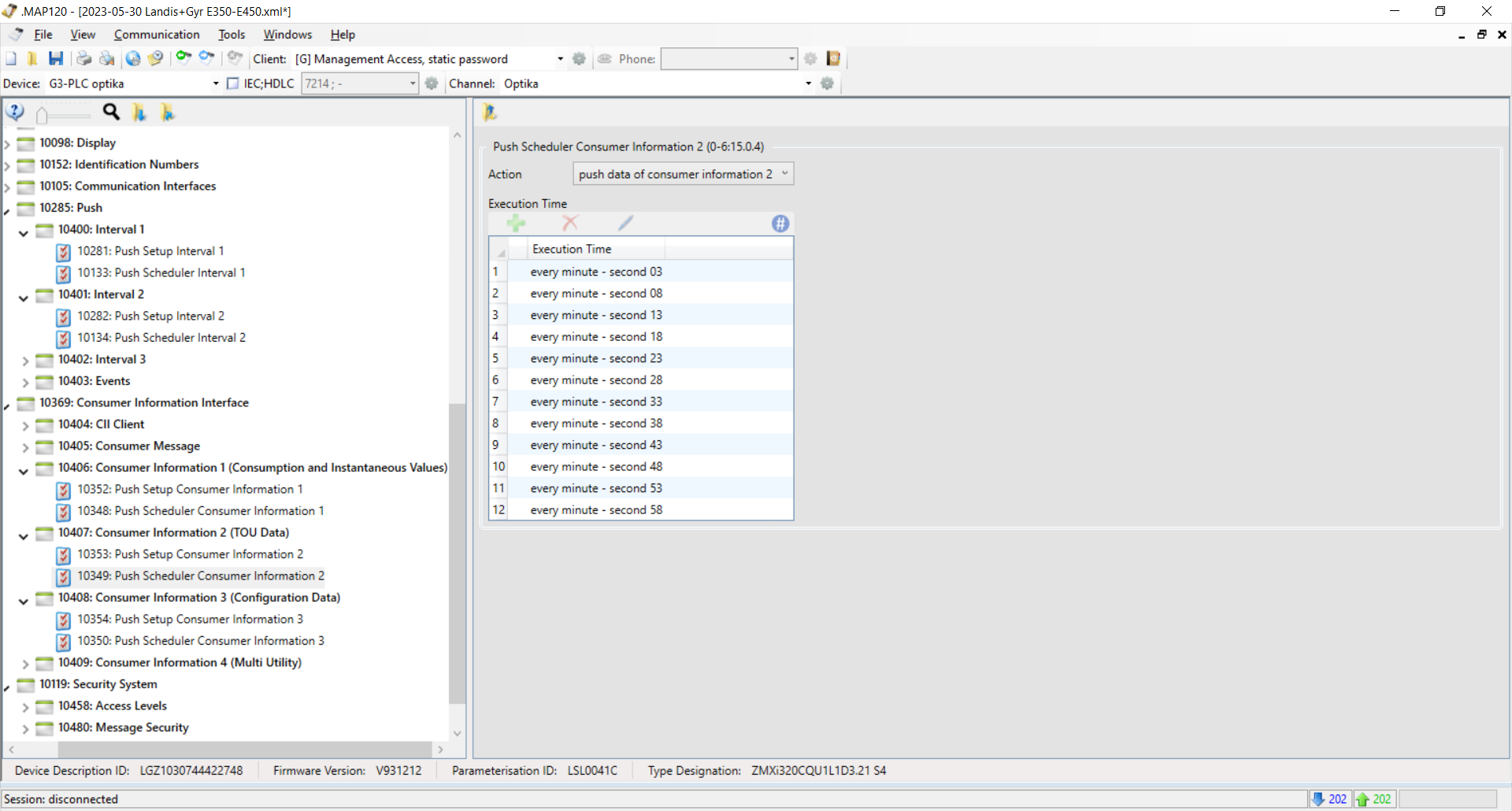

8. Push Scheduler Consumer Information 2
