How to configure Iskraemeco AM550 meter in Iskraemeco SEP2W or Iskraemeco Symbiot
Configure the Iskraemeco AM550 meter in the Iskraemeco SEP2W or Symbiot tool so that it sends the Reduxi standard telegram.
1 Basic structure and tool
1.1 Use the Reduxi standard telegram structure
Configure the Iskraemeco AM550 meter according to the Reduxi standard telegram structure for DLMS push on I1/P1 interface. Make the configuration with the parameters in the following sections.
Reduxi needs only one telegram with the data defined in the Reduxi standard telegram structure for DLMS push on I1/P1 interface.
1.2 Configure the meter in the Iskraemeco tool
Make the configuration in the Iskraemeco SEP2W or Iskraemeco Symbiot tool. The next sections follow the settings in the tool, one after another.
2 Push settings for Interval 1
2.1 Push action scheduler: Interval 1

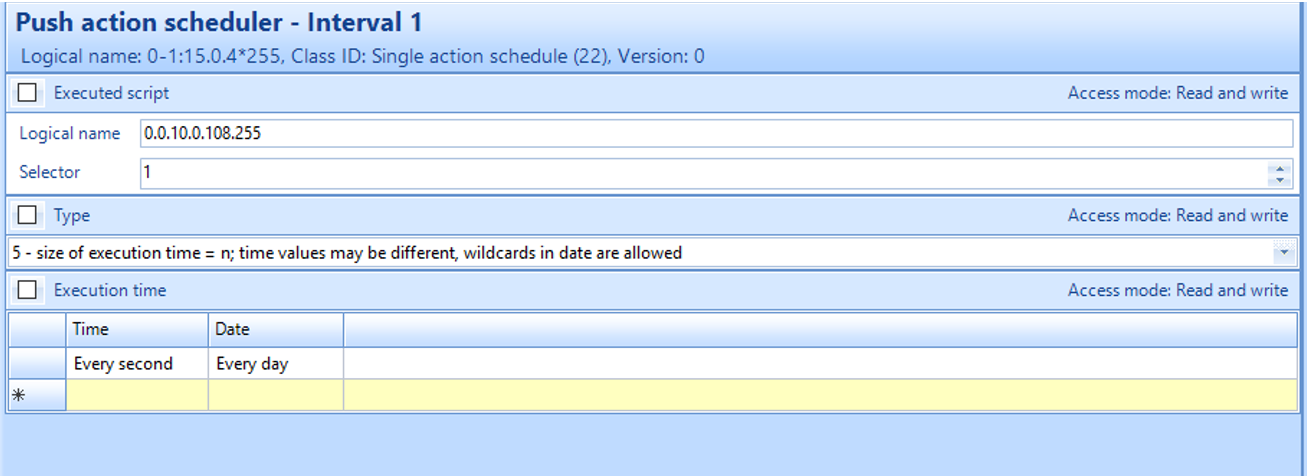

Set the Push action scheduler for Interval 1 as shown in the screenshot.
Text description of this image
Screenshot of the Iskraemeco configuration tool, page Push action scheduler - Interval 1. Logical name: 0-1:15.0.4*255, Class ID: Single action schedule (22), Version: 0. Block Executed script (Access mode: Read and write): Logical name: 0.0.10.0.108.255; Selector: 1. Block Type (Read and write): 5 - size of execution time = n; time values may be different, wildcards in date are allowed. Block Execution time (Read and write): table with columns Time and Date; row 1: Every second, Every day; an empty new row marked with a star.
2.2 Push setup: Interval 1

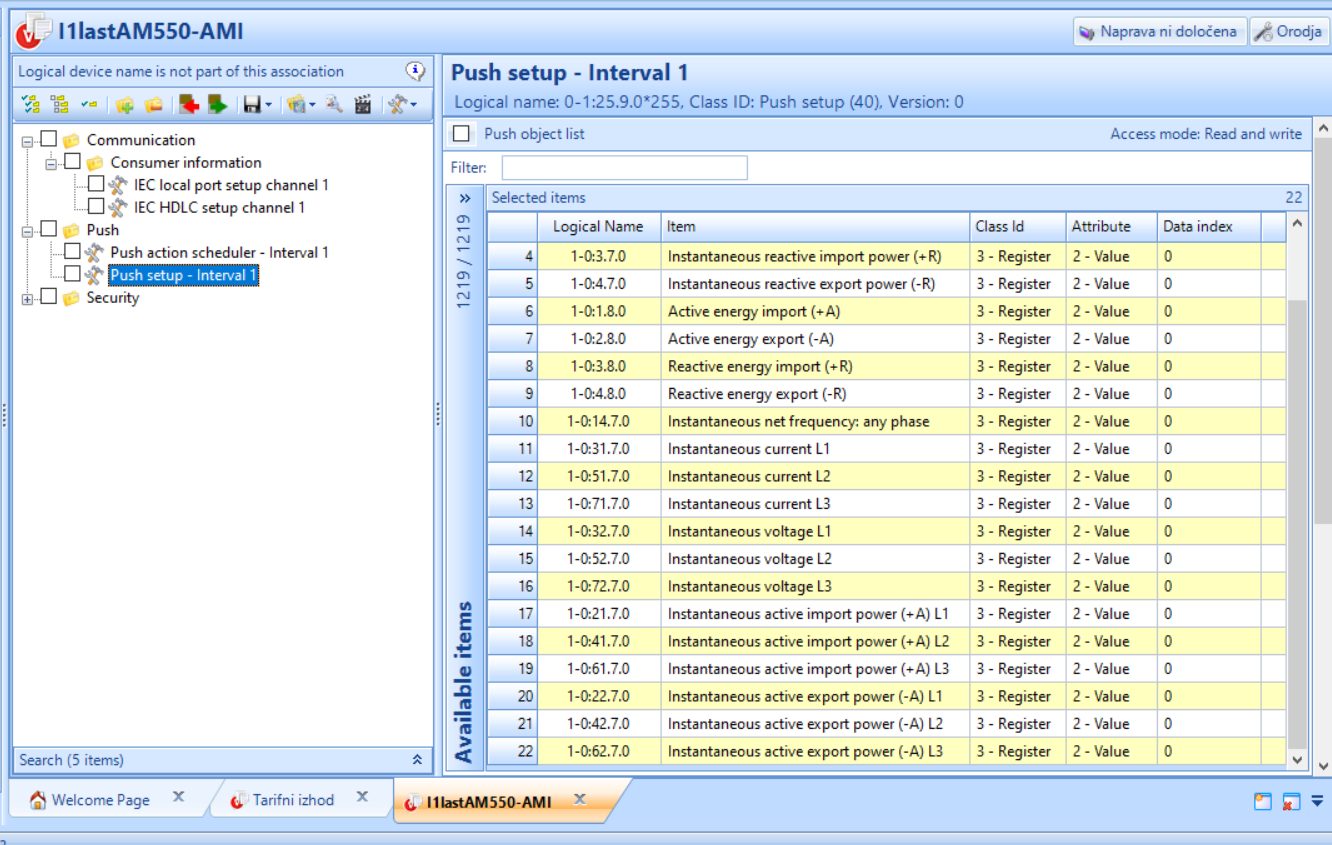

Set the Push setup for Interval 1 as shown in the screenshot.
Text description of this image
Screenshot of the Iskraemeco configuration tool, window titled I1lastAM550-AMI, with buttons Naprava ni določena [Device not specified] and Orodja [Tools] at the top right. Left tree (all checkboxes unticked): Communication > Consumer information > IEC local port setup channel 1, IEC HDLC setup channel 1; Push > Push action scheduler - Interval 1, Push setup - Interval 1 (selected, highlighted); Security (collapsed). Text above the tree: Logical device name is not part of this association. Search (5 items) at the bottom left. Right panel title: Push setup - Interval 1; Logical name: 0-1:25.9.0*255, Class ID: Push setup (40), Version: 0. Block Push object list (Access mode: Read and write), Filter field empty, list Selected items with counter 22 and side label 1219 / 1219 Available items. Table columns: Logical Name, Item, Class Id, Attribute, Data index. Rows (all Class Id 3 - Register, Attribute 2 - Value, Data index 0): 4: 1-0:3.7.0 Instantaneous reactive import power (+R); 5: 1-0:4.7.0 Instantaneous reactive export power (-R); 6: 1-0:1.8.0 Active energy import (+A); 7: 1-0:2.8.0 Active energy export (-A); 8: 1-0:3.8.0 Reactive energy import (+R); 9: 1-0:4.8.0 Reactive energy export (-R); 10: 1-0:14.7.0 Instantaneous net frequency: any phase; 11: 1-0:31.7.0 Instantaneous current L1; 12: 1-0:51.7.0 Instantaneous current L2; 13: 1-0:71.7.0 Instantaneous current L3; 14: 1-0:32.7.0 Instantaneous voltage L1; 15: 1-0:52.7.0 Instantaneous voltage L2; 16: 1-0:72.7.0 Instantaneous voltage L3; 17: 1-0:21.7.0 Instantaneous active import power (+A) L1; 18: 1-0:41.7.0 Instantaneous active import power (+A) L2; further rows up to 22 for active import power L3 and active export power (-A) L1 to L3. Tabs at the bottom: Welcome Page, Tariffi izhod, I1lastAM550-AMI (active).
3 Consumer information
3.1 Security setup: Consumer information

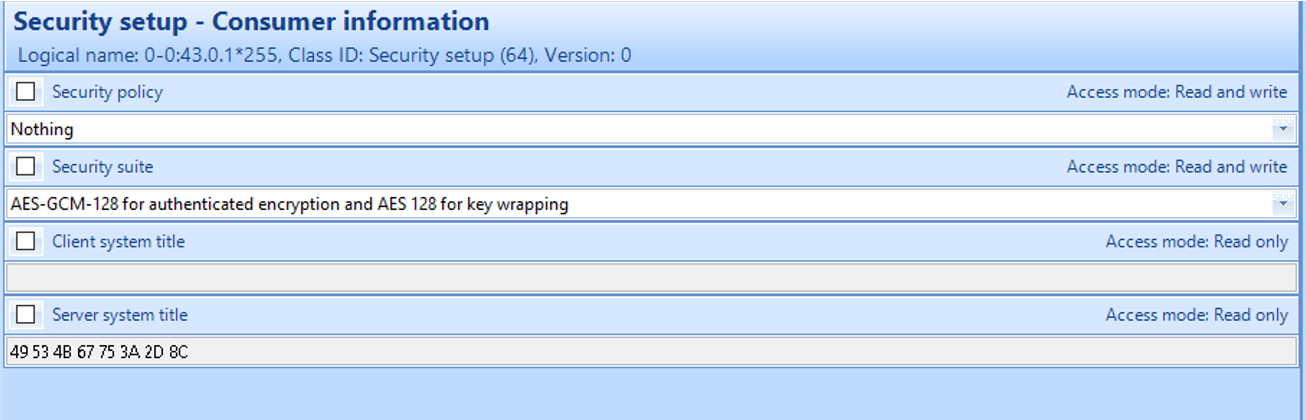

Set the Security setup for Consumer information as shown in the screenshot.
Text description of this image
Screenshot of the Iskraemeco configuration tool, page Security setup - Consumer information. Logical name: 0-0:43.0.1*255, Class ID: Security setup (64), Version: 0. Fields, each with an unticked checkbox: Security policy (Access mode: Read and write): Nothing; Security suite (Read and write): AES-GCM-128 for authenticated encryption and AES 128 for key wrapping; Client system title (Access mode: Read only): empty; Server system title (Read only): 49 53 4B 67 75 3A 2D 8C.
3.2 Push action scheduler: Consumer information

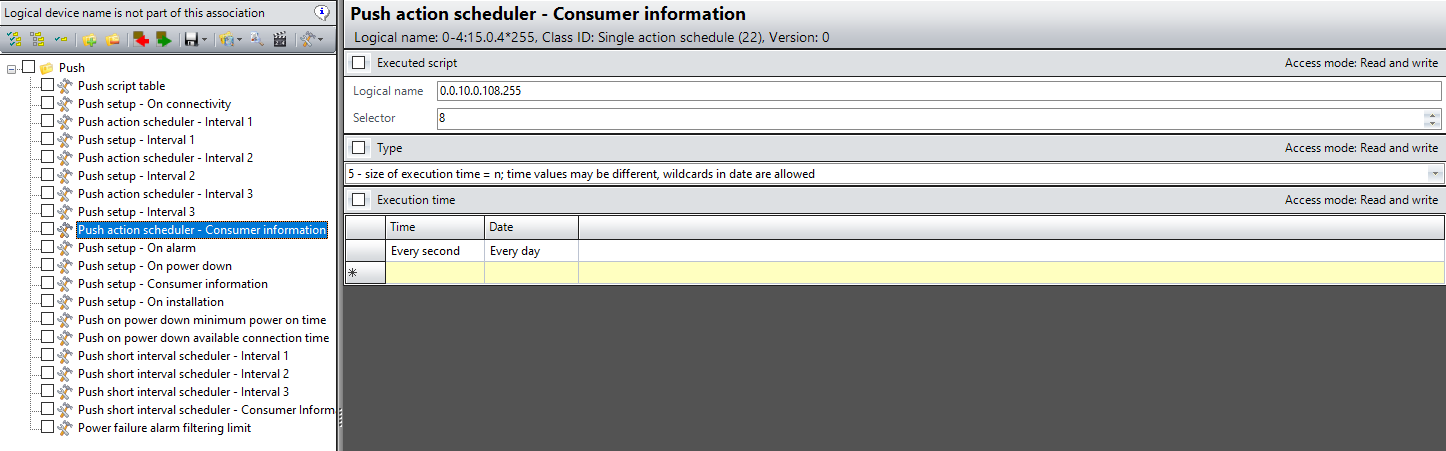

Set the Push action scheduler for Consumer information as shown in the screenshot.
Text description of this image
Screenshot of the Iskraemeco configuration tool, page Push action scheduler - Consumer information. Left tree under folder Push (all entries have unticked checkboxes; the selected one is highlighted): Push script table; Push setup - On connectivity; Push action scheduler - Interval 1; Push setup - Interval 1; Push action scheduler - Interval 2; Push setup - Interval 2; Push action scheduler - Interval 3; Push setup - Interval 3; Push action scheduler - Consumer information (selected); Push setup - On alarm; Push setup - On power down; Push setup - Consumer information; Push setup - On installation; Push on power down minimum power on time; Push on power down available connection time; Push short interval scheduler - Interval 1; Push short interval scheduler - Interval 2; Push short interval scheduler - Interval 3; Push short interval scheduler - Consumer inform (cut off); Power failure alarm filtering limit. Top of the tree: Logical device name is not part of this association, with a toolbar. Right panel title: Push action scheduler - Consumer information; Logical name: 0-4:15.0.4*255, Class ID: Single action schedule (22), Version: 0. Block Executed script (Access mode: Read and write): Logical name: 0.0.10.0.108.255; Selector: 8. Block Type (Read and write): 5 - size of execution time = n; time values may be different, wildcards in date are allowed. Block Execution time (Read and write): table with columns Time and Date; row 1: Every second, Every day; an empty new row marked with a star.
4 IEC settings for channel 1
4.1 IEC local port setup: channel 1

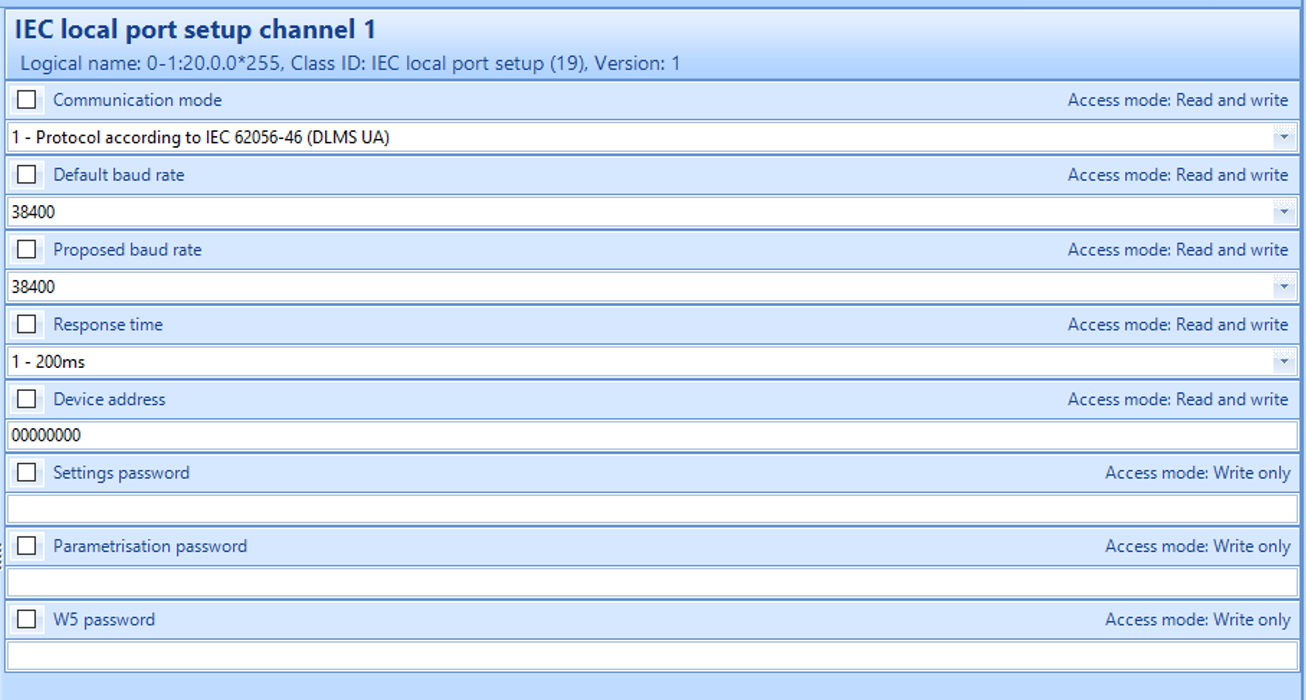

Set the IEC local port setup for channel 1 as shown in the screenshot.
Text description of this image
Screenshot of the Iskraemeco configuration tool, page IEC local port setup channel 1. Subtitle: Logical name: 0-1:20.0.0*255, Class ID: IEC local port setup (19), Version: 1. Fields, each with an unticked checkbox: Communication mode (Access mode: Read and write): 1 - Protocol according to IEC 62056-46 (DLMS UA); Default baud rate (Read and write): 38400; Proposed baud rate (Read and write): 38400; Response time (Read and write): 1 - 200ms; Device address (Read and write): 00000000; Settings password (Access mode: Write only): empty; Parametrisation password (Write only): empty; W5 password (Write only): empty.
4.2 IEC HDLC setup: channel 1

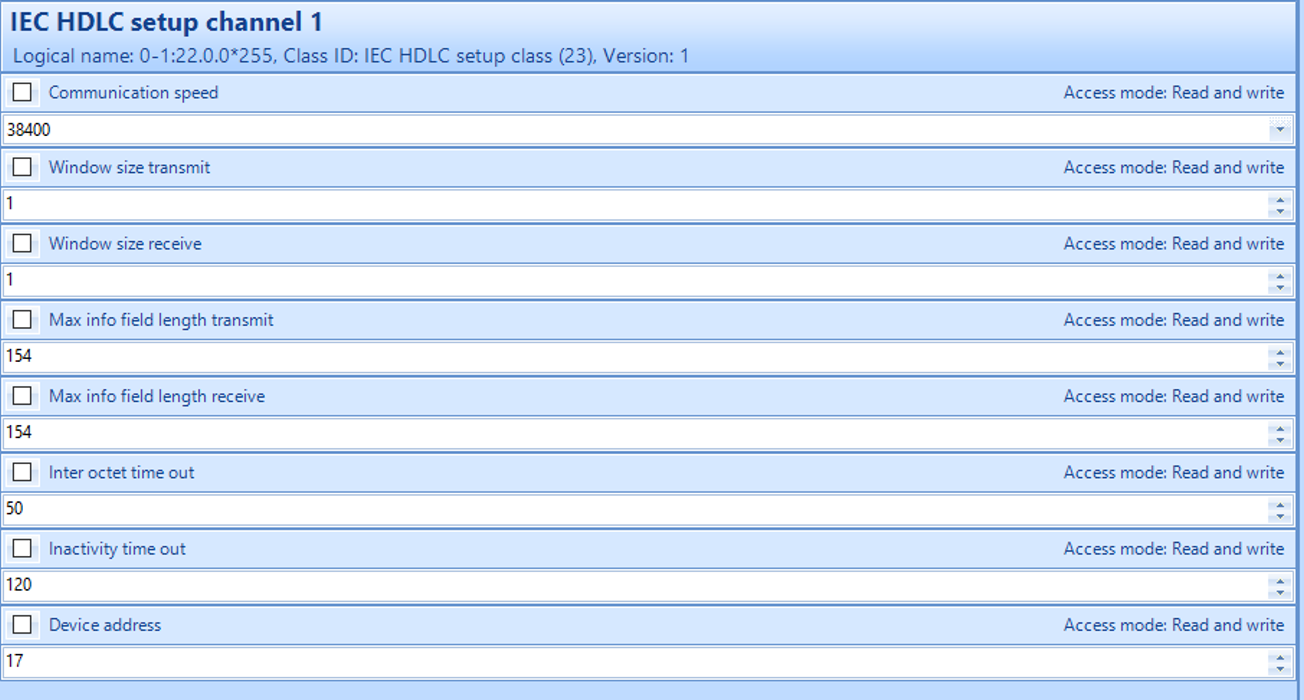

Set the IEC HDLC setup for channel 1 as shown in the screenshot.
Text description of this image
Screenshot of the Iskraemeco configuration tool, page IEC HDLC setup channel 1. Subtitle: Logical name: 0-1:22.0.0*255, Class ID: IEC HDLC setup class (23), Version: 1. Fields, each with an unticked checkbox and Access mode: Read and write: Communication speed: 38400; Window size transmit: 1; Window size receive: 1; Max info field length transmit: 154; Max info field length receive: 154; Inter octet time out: 50; Inactivity time out: 120; Device address: 17.
✓ Summary
Basic structure (Point 1): Use the Reduxi standard telegram structure. Reduxi needs only one telegram. Configure the meter in the Iskraemeco SEP2W or Symbiot tool.
Interval 1 (Point 2): Set the push action scheduler and the push setup for Interval 1.
Consumer information (Point 3): Set the security setup and the push action scheduler for Consumer information.
IEC settings (Point 4): Set the IEC local port setup and the IEC HDLC setup for channel 1.
→ Common issues
| Issue | Solution |
|---|---|
| The meter data does not match the Reduxi telegram | Check that the meter sends one telegram with the data of the Reduxi standard telegram structure (Point 1). The Interval 1 picture does not show all data. |
| The push settings are not accepted | Check the settings in Points 2 to 4 against the screenshots, one by one. |
