How to connect Pixii PowerShaper and Home (TCP/IP and RS485) with Reduxi controller
Connect Pixii PowerShaper and Pixii Home to the Reduxi Controller via Modbus TCP/IP or Modbus RTU over RS485.
Text description of this image

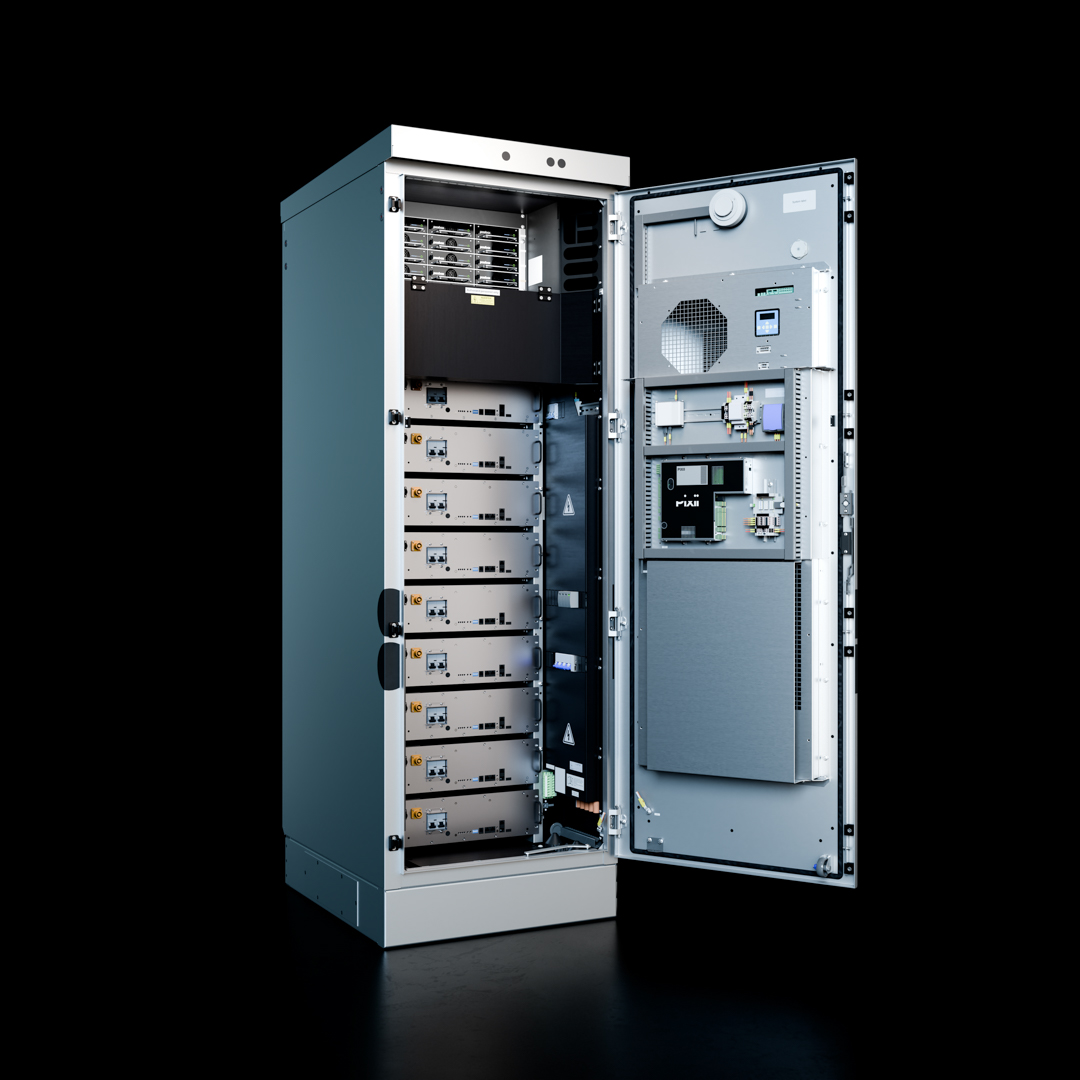

Photo of a tall grey floor-standing battery cabinet on a black background with a reflective floor. The cabinet door is open to the right. Inside, the left compartment shows a stack of battery modules in rows, with control equipment on top; the inside of the door carries a round fan or vent grille and further equipment. No readable text or labels. The existing caption names it Pixii PowerShaper battery cabinet (manufacturer image).
1 Technical documentation
Pixii PowerShaper and Pixii Home support two independent Modbus communication methods for integration with the Reduxi Controller. Manufacturer pages:
- Pixii PowerShaper – Product page from the manufacturer
- Pixii Home – Product page from the manufacturer
- Pixii document center – Datasheets and manuals from the manufacturer
2 Required equipment
Prepare the following. Use one communication method at a time.
- Reduxi Controller (installed and online)
- Pixii PowerShaper or Pixii Home
- Access to the Pixii user interface (Pixii Home App for Pixii Home, web interface for PowerShaper)
- Modbus TCP/IP: Ethernet cable and a local network shared by Pixii and the Reduxi Controller
- Modbus RTU over RS485: RS485 cable and access inside the Pixii cabinet (Pixii Gateway, Serial COM4)
- Laptop or tablet with internet access to configure the device in Reduxi
3 System overview and wiring
3.1 Communication methods
Pixii PowerShaper and Pixii Home support two independent communication methods:
- Modbus TCP/IP over Ethernet
- Modbus RTU over RS485 (Serial COM4)
Only one communication method is used at a time. It depends on the site design and the available infrastructure.
3.2 Modbus TCP/IP
Modbus TCP/IP is the recommended and most commonly used method. It runs over Ethernet. Pixii and Reduxi must be on the same IP network. Commissioning and troubleshooting are easier.
- Connect the Pixii PowerShaper or Pixii Home to the local network with an Ethernet cable.
- Connect the Reduxi Controller to the same local network.
Ethernet connection examples:
Text description of this image
Screenshot of an installation instruction page cut off at the top, with three bullet points: Route RJ45 network cable from customer switch to cabinet plinth. Use left cable entry to enter the cabinet. Connect ethernet cable to the connector -X20. Below: a faded photo of the inside of a grey equipment cabinet with two rack-mounted units with heat-sink fins on the right. A red arrow points to a cable plug at a round opening on the left of the upper unit. A black cable runs from the plug down to the cabinet plinth at the bottom.
Text description of this image
Instruction image with three bullet points at the top: Route RJ45 network cable from customer switch. Use bottom cable entry to enter the cabinet. Connect ethernet cable to the connector -X20. Below: on the left a drawing of a tall narrow grey cabinet seen from the front-left with the door open; a small red square marks a spot at the upper right inside the cabinet. Dotted red lines lead from the square to a large red-framed close-up on the right. The close-up shows a mounting plate with two terminal blocks labelled -X9 and -X10 (labels small), a small black plug or connector above them, and a yellow component at the top. The red square marks the place of the ethernet connector.
Text description of this image
Connection diagram of a cabinet, a network switch and a Reduxi controller. Left: a faded photo of the inside of a grey cabinet with a small black connector at the upper edge. A grey network cable runs from that connector to a black industrial network switch with eight RJ45 ports in the middle (two rows of four). A second grey cable runs from the switch to a dark Reduxi controller on the right (logo reduxi, black plug connector at the bottom right). No text labels other than the reduxi logo.
3.3 Modbus RTU over RS485
Use Modbus RTU over RS485 when Ethernet is not available or a serial industrial bus is required. It is a serial connection, needs access to the cabinet and uses the Pixii Gateway Serial COM4.
Text description of this image
Diagram from a manufacturer document showing a black Pixii Gateway module with green plug-in terminal blocks, in two views, with red leader lines and labels. First view (caption Figure 2.2 Left side view): labels for the terminal blocks on the left edge, top to bottom: AC Grid voltage measurement, Fan feed and control, Digital inputs, Temperature measurement, Contactor control, Heater control, Aux power, Battery measurement. The Pixii logo is printed on the module. Second view (module turned, upper part cut off at the top of the second section): labels USB, Module CAN connection, 2x USB, Serial COM2, 3, Serial COM4, CAN 2, Inputs and outputs, Relay outputs, Power In, and Earthing screw (pointing to the bottom left corner).
- RS485 is located on the Pixii Gateway
- Connection point: Serial COM4
- Physical access: inside the Pixii cabinet
- Reference: Figure 2.3 – Right side view (Serial COM4)
4 Device configuration on Pixii
Configure only the section of the method you use: 4.1 to 4.3 for Modbus TCP/IP, 4.4 to 4.6 for Modbus RTU over RS485.
4.1 Network settings (Modbus TCP/IP)
Enter the Pixii user interface (Pixii Home App for Pixii Home, web interface for PowerShaper) and go to Communication → Network settings.
Text description of this image
Screenshot of the Pixii web interface. Left dark menu titled Menu: Service Settings (highlighted), System, Battery, Converters, Meter, Communication (framed in cyan), Gateway, Setup guides, Phone view, Logout. Main area, top row: Status (green tick), Service: Adaptive peak shaving, Extended status 6300, Time 11:01. Three gauges: Grid power -4.1 kW; Power Shaper 0.1 kW; Load power -4.2 kW. Sources: L1 234 V, L2 233 V, L3 235 V; PV Source: 5 W. Battery tile: 53.5 V, 89.8 %, 2.2 A, 28.0 °C, Last calibration: N/A. Loads: P: -4241 W. Cabinet status: Door Closed, Fans Ok, Smoke det Ok, Earth Fault Ok. Pixii logo. Below: a History line chart with legend Battery voltage, SoC, PowerShaper, Meter power, and axes for battery voltage (0 to 64), SoC (0 to 120), power (-10k to 10k). Tabs at the bottom: Overview, Voltages.
Configure:
- IP address (static IP recommended)
- Subnet mask
- Gateway (if required)
Record the Pixii IP address. You need it for the configuration in Reduxi.
Text description of this image
Screenshot of the Pixii web interface, page Network setting. Left dark menu: Communication, Back, TCP/IP, MQTT, HTTPS, E-mail, SMS, Serial ports, Modbus, Certificates, Multicabinet. Header: Site: Tolvmansgatan – Hybrid, Logged in as: installer. Fields: Type: DHCP (greyed dropdown); Name: Wired connection 1; Host name; Address (ipv4), framed by a cyan rectangle; Mask; Gateway; Obtain DNS server address automatically: checkbox not ticked; DNS1: 8.8.8.8; DNS2: 8.8.4.4; NTP1: 0.pool.ntp.org; NTP2: 1.pool.ntp.org; NTP3: 2.pool.ntp.org; NTP4: 3.pool.ntp.org; NTP used: 2.pool.ntp.org. Buttons: Edit, Save (greyed).
4.2 Modbus TCP
Go to Menu → Communication → Modbus and set:
| Parameter | Value |
|---|---|
| Enabled | Yes |
| Type | TCP/IP |
| TCP Port |
502 (default) |
Save the settings.
Text description of this image
Screenshot of a Pixii web interface. Left dark menu titled Communication with entries: Back, TCP/IP, MQTT, HTTPS (with a cloud icon), E-mail, SMS, Serial ports, Modbus (highlighted with a cyan frame), Certificates, Multicabinet. Header text: Site: Tolvmansgatan – Hybrid, Logged in as: installer. Main panel titled Modbus setting: Enabled: ticked; Type: TCP/IP v4 (green dropdown); Msg. lifetime: 60; Listen to all: ticked; TCP/IP client port: greyed out, value; Multicabinet regulation type: Multiple Services. Buttons: Save, Set default.
4.3 Multicabinet regulation type (required for Modbus TCP)
Go to Menu → Communication → Modbus. Two options are available:
Multiple Services
- Pixii internal control logic is active
- Reduxi acts as a supervisory system
Text description of this image
Screenshot of the Pixii web interface, page Service Settings, header Site: Tolvmansgatan – Home, Logged in as: installer. Left dark menu Menu (cut off at the left): Service Settings, System, Battery, Converters, Meter, Communication, Gateway, Setup guides, Phone view, Logout. Profile dropdown: None, green square, button Set, grey box showing None. List Unused services with play arrows: Scheduler, Demand response, Adaptive peak shaving, Target SoC, Voltage Support, Power control, Peak shaving. Right list headed Run by priority, Enable services (checkbox ticked) is empty and framed by a red rectangle. Buttons: Save, Refresh, Guide, Back.
Simple Modbus
- Reduxi takes full control
- Pixii operates as a controlled device
Text description of this image
Screenshot of the Pixii web interface. Left dark menu titled Communication: Back, TCP/IP, MQTT, HTTPS (with cloud icon), E-mail, SMS, Serial ports, Modbus, Certificates, Multicabinet. Header: Site: PIXII Vassundavägen 178, Logged in as: installer. Panel Modbus setting: Enabled: ticked; Type: TCP/IP v4 (green dropdown); Msg. lifetime: 60; Listen to all: ticked; TCP/IP client port: grey box; Multicabinet regulation type: Simple. Buttons: Save, Set default.
For the system to respond properly, activate Demand Response. Click the play button (move it to the right) and save the setting.
Text description of this image
Screenshot of the Pixii web interface, two parts. Left dark menu titled Communication: Back, TCP/IP, MQTT, HTTPS (with cloud icon), E-mail (highlighted light), SMS, Serial ports, Modbus, Certificates, Multicabinet. Header: Site: Lärlingsgatan 16, Logged in as: installer. Page Service Settings: Profile dropdown: None, a green square, button Set, and a grey box showing None. Left list Unused services with play arrows: Scheduler, Peak shaving, Target SoC, Voltage Support, Power control. Right list headed Run by priority, Enable services (checkbox ticked): one entry Demand response with a stop square, up and down arrows and a green tick. Both lists have a horizontal scroll bar. Buttons at the bottom: Save, Refresh (outlined), Guide, Back.
4.4 Multicabinet role (required for RS485)
Go to System → General settings.
| System | Multicabinet role |
|---|---|
| Single-cabinet system | Client |
| Multi-cabinet system | One cabinet: Master. All others: Client. |
4.5 Serial port (RS485)
Go to Menu → Communication → Serial ports. Select the Serial Port tab 4 (COM4) and configure:
| Parameter | Value |
|---|---|
| Enabled | Yes |
| Baud rate | 19200 |
| Data bits | 8 |
| Stop bits | 1 |
| Parity | None |
Save the settings.
4.6 Modbus RTU
Go to Menu → Communication → Modbus and set:
| Parameter | Value |
|---|---|
| Enabled | Yes |
| Type | RS485 RTU |
| Message lifetime | 60 |
| Serial port identity | 4 |
| Serial Modbus address |
1 (single cabinet) |
| Multicabinet regulation type | simple |
In multi-cabinet systems, each cabinet needs a unique Modbus address.
Save the settings.
5 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
6 Add Pixii to the Reduxi Controller
This step is the same for both communication methods, except for the selected connection type.
6.1 Basic settings
Log in to the Reduxi Configurator (see Point 5) and click + Add device.
Text description of this image
Screenshot of the left sidebar of the Reduxi Configurator. Top: reduxi logo with the text CONFIGURATOR. Collapsed sections: Devices (plus icon) and Strategies (plus icon). Below, two buttons side by side: Add device (plus icon, marked with a blue highlight box) and Add strategy (plus icon). Below them two entries: Settings and Profile. The area to the right of the sidebar is empty white.
In the first step, define the basic settings:
- Device type:
Battery - Type:
Pixii PowerShaperorPixii Home - Name: a name of your choice
Text description of this image
Screenshot of the Reduxi Configurator add-device wizard, step 1 of 3. Progress bar with three steps: 1 Basic settings (active, black circle), 2 Communication channel (grey), 3 Advanced settings (grey). Heading: Basic settings. Fields: Device type * : empty dropdown; Type * : empty dropdown; Name * : empty text field. Buttons: Back (bottom left), Next (bottom right, dark).
6.2 Communication settings
Select the communication type and set the parameters accordingly. Use the values you set on Pixii (see Point 4).
| Communication type | Use for |
|---|---|
TCP/IP |
Modbus TCP |
Serial RS485 |
Modbus RTU |
Text description of this image
Screenshot of the Reduxi Configurator wizard with three steps: 1 Basic settings (done, black), 2 Communication channel (current, black), 3 Advanced settings (grey). Heading: Communication channel and device configuration. Connection *: TCP/IP. IP *: empty. Port *: 502. Modbus unit ID *: 2, framed by a blue rectangle. Buttons: Back, Test communication, Next (dark).
6.3 Test communication
Click Test communication at the bottom of the wizard. It reads the Pixii once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
The test returns one of two results:
Text description of this image
Screenshot of a dialog titled "Test communication" with a close button (x) at top right. Green text in the content box: "Successful readout from device". Values listed: Error: false; Battery voltage: 53.34 V; Grid active power: 1077 W; PV export active energy: null Wh; PV voltage: null V; Load import active energy: 2293200 Wh; Grid import active energy: 2402100 Wh; PV current: null A; Battery state of charge: 88 %; Battery export active energy: 83000 Wh; Battery import active energy: 87400 Wh; Off-grid: false; Battery active power: -9 W; Battery min. active power: -10668 W; Load active power: 994 W; Battery current: -0.17 A; Battery max. active power: 5334 W; Grid export active energy: 100 Wh; State name: NORMAL; PV active power: null W; PV min. active power: null W; Inverter active power: 985 W. Button at bottom right: Close.
Text description of this image
Screenshot of a dialog titled Test communication (close X at top right). First box: Unable to communicate with device. Second box with red text: Unable to communicate with null on port 502. Check if service is enabled on device, port number is correct and device is reachable on the network. ping: null: Name or service not known. Button: Close (dark).
6.4 Advanced settings
The advanced settings are optional. They depend on the needs of the location where the Reduxi Controller is installed. After you have finished all advanced settings, press Done at the lower right.
Text description of this image
Screenshot of the Reduxi Configurator add-device wizard, step 3 of 3 (Advanced settings). Progress bar with three black circles 1 Basic settings, 2 Communication channel, 3 Advanced settings (active). Heading: Advanced settings. Eight yes/no questions, each with a toggle that is off and a small default hint at the right: Do you want to set data-saving interval? (Default: 1 min); Do you want to set reading delay? (Default: 1000 ms); Do you want to set writing delay? (Default: 1000 ms); Do you want to set power generation limits and capabilities?; Do you want to set power consumption limits and capabilities?; Do you want to limit communication with the device to read-only? (Default: No); Do you want to invert direction for energy import and export? (Default: No); Do you want to exclude device from summary? (last question, small text; Default: No). Bottom row of three dropdowns: L1 is connected to main feed: L1; L2 is connected to main feed: L2; L3 is connected to main feed: L3. Buttons: Back (left) and a dark button at the right (label small, reads Done).
7 Check the readings and set control
7.1 Control settings for Pixii devices
You control the Pixii system in one of two ways (see Point 4, Point 4.3). Depending on the option, set the matching control type in the Reduxi Configurator for every Pixii device you add.
For Multiple Services, configure the device under Devices – Pixii – Details – All settings as shown:
Text description of this image
Screenshot of the Reduxi Configurator with two panels. Left panel Communication channel: Connection *: TCP/IP. IP *: 192.168.86.43. Port *: 502. Right panel Device configuration: Modbus unit ID *: 1. Is PV installed? *: toggle set to No. Control mode *: EMS by Pixii (Multiple Services), with grey hint text Select control mode of inverter.
For Simple Modbus, configure the device under Devices – Pixii – Details – All settings as shown:
Text description of this image
Screenshot of the Reduxi Configurator with two panels. Left panel Communication channel: Connection *: TCP/IP. IP *: 192.168.86.43. Port *: 502. Right panel Device configuration: Modbus unit ID *: 1. Is PV installed? *: toggle set to No. Control mode *: EMS by setpoint (Simple Modbus), with grey hint text Select control mode of inverter.
7.2 Last measurements
After communication is established, check the values under Devices – Pixii PowerShaper in the Reduxi Configurator as an additional test.
Text description of this image
Screenshot of the Reduxi device page for a heat pump, Last measurements tab (tabs: Last measurements, Analysis, Archive; a dropdown and refresh icon at top right). Top tiles: "Control type" with buttons Auto (dark) and Manual (highlighted teal, selected); a second tile with a row of four small buttons, one highlighted teal (labels small: Off.). Card "Current": three values 0.55, 0.57, 0.59 (phase labels and units small). Card "Power": three values 0.4, 0.0, 0.4. Card "Energy": one value 78.7. Card "Other": rows with values OFF, MANUAL, OFF, OFF, ON. Card "Settings": Voltage values 246.00, 244.40, 246.30. Each value has a small timestamp.
7.3 Enable control by Reduxi
For advanced battery control, integrate the device into the strategy of the Reduxi system. Under Devices – Pixii PowerShaper or Pixii Home in the Reduxi Configurator, set the control type to AUTO. Only then do strategy commands affect the battery.
To achieve maximum flexibility and energy cost reduction with dynamic prices and dynamic tariffs, define a strategy as described in Strategies for Reduxi controller.
After you have added the device, you can also monitor and control it via the Reduxi application.
✓ Summary
Preparation (Points 1–3): Read the manufacturer pages and choose one method: Modbus TCP/IP over Ethernet (recommended) or Modbus RTU over RS485 on Serial COM4.
Pixii (Point 4): Set the network and Modbus settings on Pixii. TCP: IP address, port 502, Multicabinet regulation type. RTU: Multicabinet role, serial port 4 with 19200 baud and Modbus settings.
Add to Reduxi (Points 5–6): Open the Configurator and add the device with type Pixii PowerShaper or Pixii Home. Select TCP/IP or Serial RS485. Run Test communication.
Go live (Point 7): Set the control type for your Pixii option, check Last measurements and set the control type to AUTO.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication fails | Check that Pixii and the Reduxi Controller are on the same IP network and that IP address and port 502 are correct (TCP). For RTU, check that the serial port settings on Pixii match the Reduxi settings (see Point 4). |
| Modbus communication does not work | Restart Pixii. |
| Multicabinet regulation type must be changed | Only Pixii support can change the Multicabinet regulation type. |
| Reduxi commands have no effect on Pixii | Check that Demand Response is activated for Simple Modbus (see Point 4) and that the control type in Reduxi is AUTO (see Point 7). |
| RS485 connection not found | RS485 is on the Pixii Gateway, Serial COM4, inside the Pixii cabinet. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
