Reduxi Controller 2.0 Network settings
Use the additional LAN port of Reduxi Controller 2.0 for more cyber security and a more robust system.
1 LAN ports of Reduxi Controller 2.0
1.1 Additional LAN port
One of the key features of Reduxi 2.0 is the additional LAN port. It increases the cyber security and the robustness of the system.
2 Typical network settings
2.1 Network setup
This type of network settings is used most often. That usually means:
- There is a router connected to the internet.
- All devices (PV, BESS, EVSE, HVAC...) are connected to the router.
- All devices can and should connect to the internet.
2.2 Configuration
In this case, connect a network cable from the router to the LAN1 port. Configure the network settings as shown in the screenshot.
Text description of this image

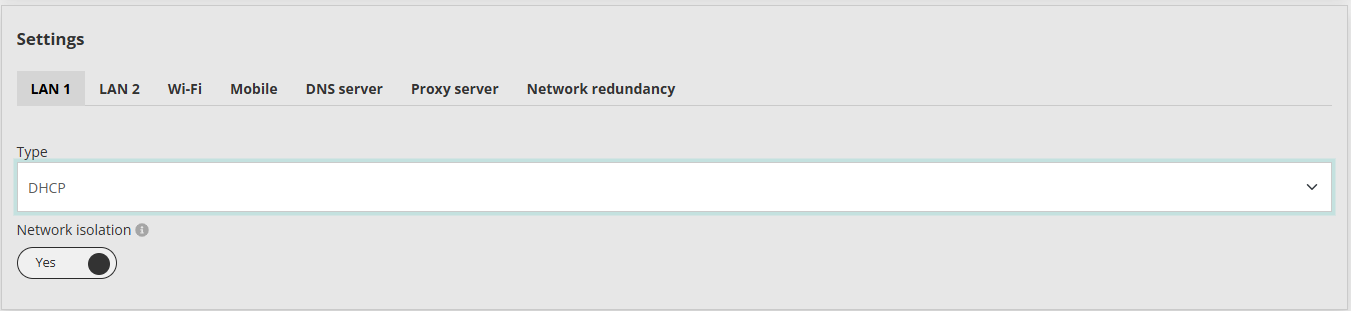

Screenshot of the Settings page with network tabs: LAN 1 (selected), LAN 2, Wi-Fi, Mobile, DNS server, Proxy server, Network redundancy. Fields on the LAN 1 tab: Type: DHCP (dropdown, focused with a light blue outline); Network isolation (info icon): toggle set to Yes.
3 Cyber security related network settings
3.1 Why isolate devices
To increase the cyber security of your installation, isolate the devices from the network. If devices (for example the battery) are isolated, a malicious user cannot control them from the internet, outside of your network.
3.2 Network setup
The network setup in this case is:
- There is a router connected to the internet.
- All devices (PV, BESS, EVSE, HVAC...) are not connected to the router that can access the internet.
- All devices are connected to a switch and have static network settings.
- The switch with the devices is connected to LAN2 of the Reduxi Controller.
- The Reduxi Controller is connected to the router via LAN1.
3.3 Network isolation setting
Text description of this image

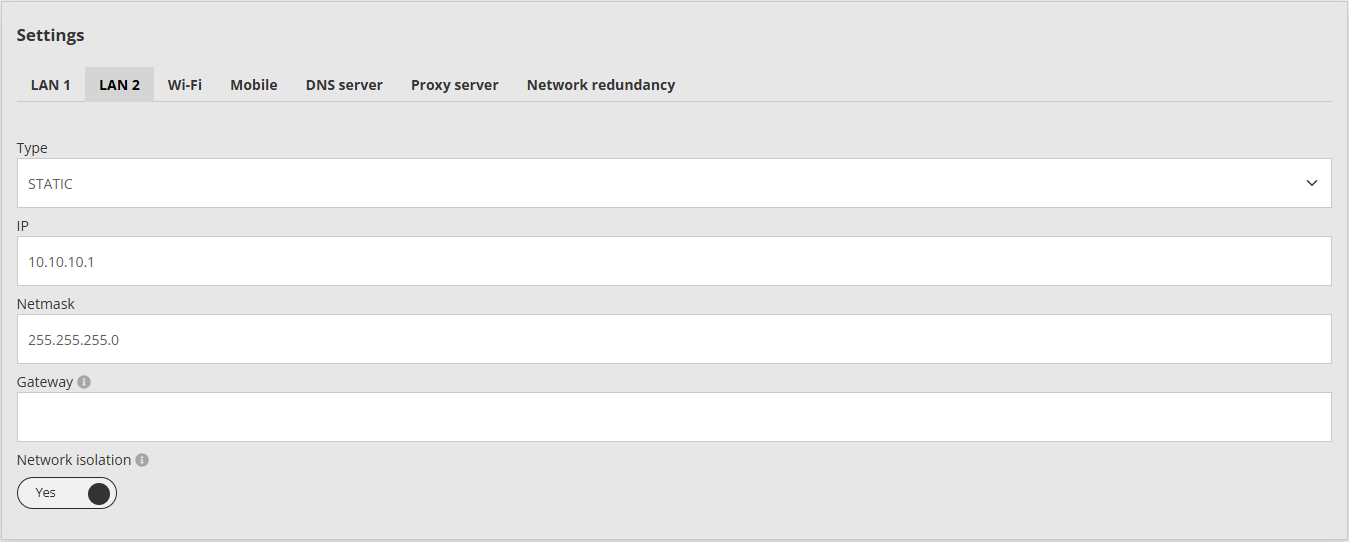

Screenshot of the Settings page with network tabs: LAN 1, LAN 2 (selected), Wi-Fi, Mobile, DNS server, Proxy server, Network redundancy. Fields on the LAN 2 tab: Type: STATIC (dropdown); IP: 10.10.10.1; Netmask: 255.255.255.0; Gateway (info icon): empty; Network isolation (info icon): toggle set to Yes.
The next screenshot shows a typical definition of the network settings. All devices have a static IP. The Reduxi Controller works as a gateway.
Text description of this image
Screenshot of a dark Windows dialog titled Edit IP settings. Dropdown: Manual. Section IPv4: toggle On (blue). Fields: IP address: 10.10.10.2; Subnet mask: 255.255.255.0; Gateway: 10.10.10.1; Preferred DNS: 8.8.8.8; DNS over HTTPS: Off (dropdown); Alternative DNS (field below, value not visible). Buttons at the bottom: Save and Cancel.
4 Redundancy related network settings
4.1 Redundant network
To set up a redundant network, use the following settings.
Text description of this image

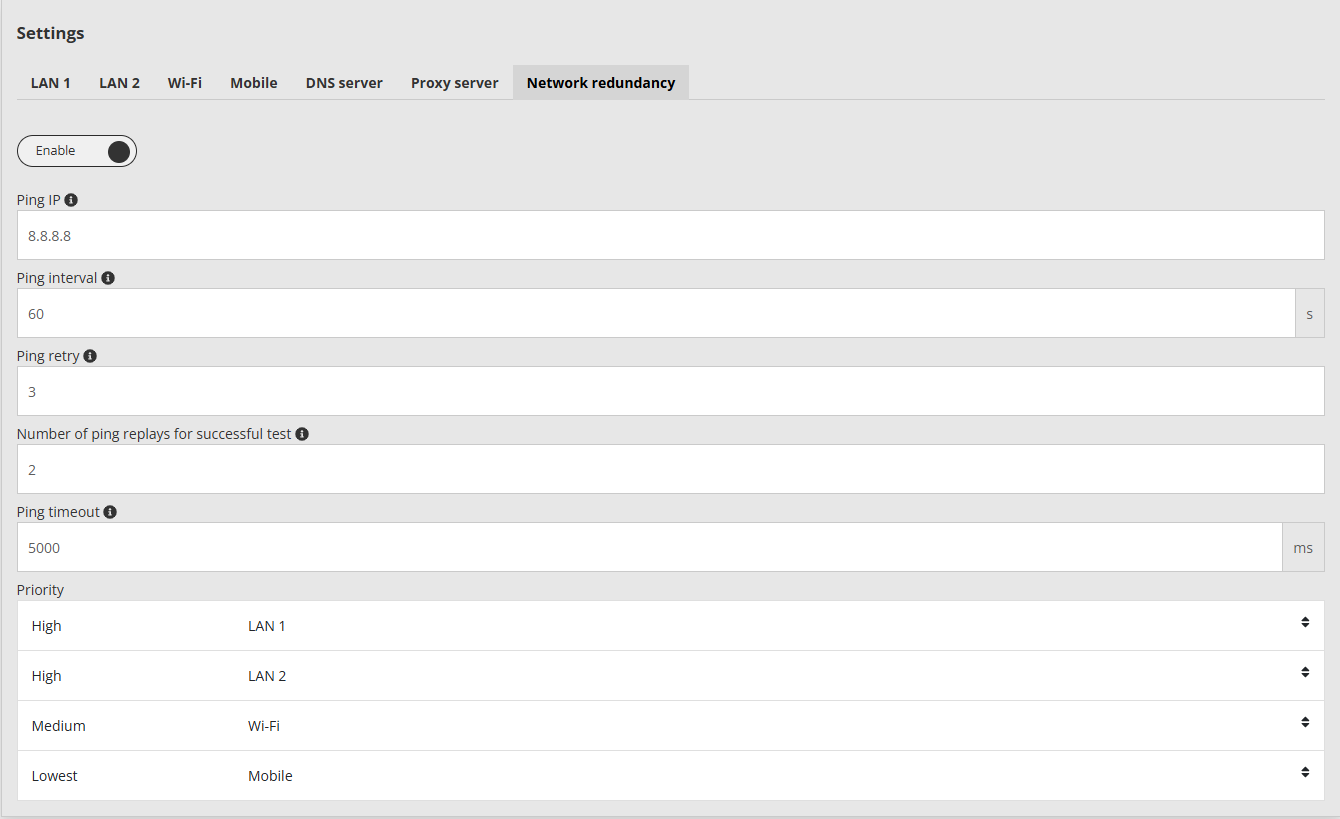

Screenshot of the Settings page, tab Network redundancy (selected; other tabs: LAN 1, LAN 2, Wi-Fi, Mobile, DNS server, Proxy server). Toggle labelled Enable (dark knob on the right). Fields, each with an info icon except Priority: Ping IP: 8.8.8.8; Ping interval: 60 s; Ping retry: 3; Number of ping replays for successful test: 2; Ping timeout: 5000 ms. Priority list (rows with up/down arrows for reordering): High, LAN 1; High, LAN 2; Medium, Wi-Fi; Lowest, Mobile.
✓ Summary
Basics (Point 1): Reduxi Controller 2.0 has an additional LAN port. LAN1 and LAN2 have the same function.
Typical setup (Point 2): The router connects to LAN1. All devices connect to the router and to the internet.
Cyber security (Point 3): Devices connect to a switch with static IPs. The switch connects to LAN2, the router to LAN1. Use the mandatory network isolation setting.
Redundancy (Point 4): Use the redundancy network settings shown in the screenshot.
→ Common issues
| Issue | Solution |
|---|---|
| Devices on LAN2 can reach the internet | To isolate the devices connected on LAN2, the network isolation setting is mandatory. See Point 3. |
| Devices on LAN2 are not reachable | All devices behind the switch need static network settings. The Reduxi Controller works as gateway. |
