How to connect Starcharge Aurora AC EVSE charger with Reduxi controller
Connect the Reduxi Controller to the StarCharge Aurora via the OCPP protocol. Reduxi can reduce your electricity bill by 70%.

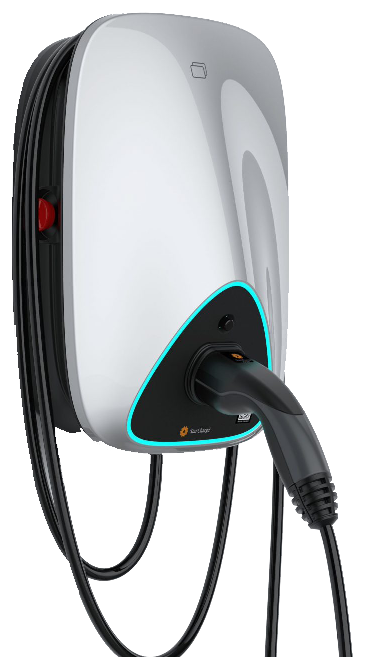

Text description of this image
Photo of a wall-mounted EV charger (wallbox) on a white background. The housing is glossy white and silver with a black lower front panel outlined by a cyan light strip. A black charging plug is inserted in the socket on the front, and a thick black cable hangs below in loops. A red button or light is visible on the left side of the housing. A small logo is on the front panel. No readable text.
- Technical documentation
- Required equipment
- Install the charger
- Log in to the Aurora web interface
- Enter the ChargePoint ID and set up OCPP
- Configure the network settings of the Aurora
- Log in to the Reduxi web interface
- Add the Aurora to Reduxi
- Check the readings
- Summary
- Common issues
- Related articles
1 Technical documentation
Manufacturer document for the StarCharge Aurora:
- StarCharge Aurora operation manual (English) – Installation, commissioning, charging and maintenance of the Aurora wallbox.
2 Required equipment
You need:
- Reduxi Controller
- StarCharge Aurora AC wallbox, installed
- PC or laptop to open the web interface of the charger
- Ethernet cable (for the LAN connection or for the first login)
- SIM card (only for the 4G connection)
- Laptop or tablet with internet access to configure the device in Reduxi
3 Install the charger
Install the wallbox according to the manufacturer's instructions and put it into operation. Details are in the manual: https://assets-global.website-files.com/5e870ec047674e044920655e/6388d21b3d2bede4cf01cfd5_Star%20Charge%20Wallbox_Operation%20Manual%20(English).pdf
You have three options to connect the charging station to the internet: SIM card, Wi‑Fi or Ethernet.
The photo shows the connection area of the charging station. Insert the SIM card or connect the Ethernet cable next to the AC connection.
Text description of this image
Installation drawing of the connection area inside the StarCharge Aurora charger housing, seen from an angle: a dark charger body with a yellow outlined box holding the terminal block with coloured wires (yellow-green, blue, brown, black) and a purple Ethernet cable running out to the right through a cable opening. Text callouts: SIM Card; Wiring comparison; After using the blade to cut through threading position, thread the ethernet; Ethernet cable socket; Ethernet Cable. Red lines connect each callout to its part.
4 Log in to the Aurora web interface
After the installation, connect to the charging station with a PC or laptop.
4.1 Connection via Ethernet cable
192.168.88.1 and 192.168.88.200. We recommend a program such as NetSetMan. Alternatively, set it in the operating system for the network connection.Text description of this image
Screenshot of the NetSetMan program (German-language menu: Programm, Windows Tools, Optionen, Hilfe). Left: a profile tree with group Gruppe containing the profiles Auto and StarCharge Aurora. Right: tab Ethernet with the adapter Intel(R) Ethernet Connection (18) I219-V. Section IP & Gateway ticked: IP-Adresse automatisch beziehen [obtain IP automatically] not selected; Folgende IP-Adresse verwenden [use the following IP address] selected. In a red box: IP-Adresse: 192.168.88.200; Subnetzmaske: 255.255.255.0; Standardgateway: 192.168.88.1. Section DNS-Server ticked: DNS-Serveradresse automatisch beziehen not selected; Folgende DNS-Serveradressen verwenden selected; Bevorzugt [preferred]: empty; Alternativ [alternate]: empty (both in the red box). Below: Erweiterte TCP/IP-Einstellungen with WINS, Routentabelle and IPv6, all unticked.
Text description of this image
Collage of six Windows 11 screenshots with red boxes and red numbers 1 to 7 showing how to set a fixed IP address on the Ethernet adapter. Step 1: Start menu search box at the taskbar with the text network typed. Step 2: search result Best match: View network connections, Control panel (red box); below are web suggestions and settings entries (Wi-Fi settings, Firewall & network protection, Bluetooth and other devices settings, Proxy settings, VPN settings, Mobile hotspot). Step 3: Control Panel, Network and Internet, Network Connections window listing adapters (Bluetooth-Netzwerkverbindung not connected, OpenVPN Wintun network cable unplugged, Ethernet Network 2 Intel(R) Ethernet Connection (red box), WLAN Intel(R) Wi-Fi 6 AX211 160MHz). Step 4: Ethernet Status dialog with a red box around the Properties button. Step 5: Ethernet Properties dialog (German-language list of items), with Internet Protocol, Version 4 (TCP/IPv4) selected (red box). Step 6: red box around the Properties button of that dialog. Step 7: Internet Protocol Version 4 (TCP/IPv4) Properties dialog: Obtain an IP address automatically not selected; Use the following IP address selected, with fields IP address, Subnet mask and Default gateway filled with 192.168.x.x style numbers (exact digits; subnet mask looks like 255.255.255.0); Use the following DNS server addresses selected, Preferred DNS server and Alternate DNS server empty; red box around these fields.
192.168.88.206. Log in with the default user and password below.| Parameter | Value |
|---|---|
| User | wbdh |
| Password | 26835941 |
Text description of this image
Screenshot of the Aurora charger web login page. Background: photo of a modern office or factory building with a dark facade and green glass sections under a blue sky; a company logo and Chinese characters are faintly visible on the facade. Centre: heading Login (faint), two dark input fields labelled Username and Password (a small red mark sits at the right end of the Username field), and an orange button Sign me in. Field contents are not shown.
Text description of this image
Screenshot of the StarCharge web interface, page Quick Setup (breadcrumb Home / Quick Setup). Dark left menu: Quick Setup (highlighted), Hardware Setting, Software Setting, Charging Status, Upload and download. Top bar: Language, User Set. Fields: ChargePoint Id: empty, with Submit and Refresh buttons. Section OCPP Setting: IP or Domain Name: empty; SSL Enable: disable (dropdown); Port: empty; Path: empty; Authorization key: empty; Submit and Refresh buttons. Section Certificate Import: file field with a Browse button and a Submit button.
5 Enter the ChargePoint ID and set up OCPP
Text description of this image
Screenshot of the StarCharge web interface, Quick Setup page, with red boxes and red numbers 1 to 8. Red box 1: Quick Setup in the dark left menu (other entries: Hardware Setting, Software Setting, Charging Status, Upload and download). Red box 2: ChargePoint Id: 1234. Red box around the OCPP Setting form: 3. IP or Domain Name: 36.153.57.202; 4. SSL Enable: disable; 5. Port: 3400; 6. Path: /steve/websocket/CentralSystemSe (cut off, end not shown); 7. Authorization key: empty. Red box 8: Submit button next to a Refresh button. Below: Certificate Import with a file field, Brows button and Submit button; heading 4G configuration.
1 when the backend uses TLS for access, otherwise 0.9000./ocpp/1.6/json
6 Configure the network settings of the Aurora
In the web interface, configure how the charging station connects to the internet or the local network. Options: 4G (SIM), Wi‑Fi or LAN (Ethernet).
6.1 4G (SIM)
Text description of this image
Screenshot of the StarCharge web interface, Software Setting page, with red boxes and red numbers 1 to 4. Dark left menu: Quick Setup, Hardware Setting, Software Setting (highlighted, red box 1), Charging Status, Upload and download. Main area: heading 4G configuration (red box 2). Red box 3 around the form: Enable modification (checkbox, appears ticked); fields APN, User, Pwd, Pin, all empty; EncrypType dropdown. Red box 4 around the Submit button, next to Refresh. Below: heading Ethernet configuration with checkbox Enable modification (unticked) and Submit and Refresh buttons; heading DNS configuration.
6.2 Wi‑Fi
Text description of this image
Screenshot of the StarCharge web interface, Software Setting page, with red boxes and red numbers 1 to 4. Dark left menu: Quick Setup, Hardware Setting, Software Setting (highlighted, red box 1), Charging Status, Upload and download. Main area: heading Wifi configuration (red box 2). Red box 3 around the form: Wifi enable (ticked); Mode selection: STA (dropdown); SSID: empty; Pwd: empty; Channel: 1 (greyed dropdown); Encryption: WPA2 (dropdown); a second ticked checkbox with an Encryption enable label. Red box 4 around the Submit button, next to a Refresh button.
6.3 LAN (Ethernet)
Text description of this image
Screenshot of the StarCharge web interface, Software Setting page, with red boxes and red numbers 1 to 4. Dark left menu: Quick Setup, Hardware Setting, Software Setting (highlighted, red box 1), Charging Status, Upload and download. Top bar: Language, User Set. Main area: heading Ethernet configuration (red box 2). Red box 3 around two ticked checkboxes: Enable modification and Dhcp enable. Red box 4 around the Submit button, next to a Refresh button. Below: heading DNS configuration with an unticked checkbox Dns enable, and Submit and Refresh buttons.
7 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
8 Add the Aurora to Reduxi
Create the OCPP communication between the StarCharge Aurora and the Reduxi Controller.
8.1 Basic settings
Log in to the local Reduxi Configurator (see Point 7) and click + Add device.
Text description of this image
Screenshot of the Reduxi Configurator sidebar. Header: reduxi Configurator logo. Section Devices (with a minus icon) lists: Iskraemeco AM550 (electricity pylon icon) and two entries with sun icons and no visible names. At the bottom is an Add device button with a plus sign, marked with a cyan rectangle.
In the first step, select the basic settings:
- Device type:
EV charger - Type:
OCPP 1.6 - JSON - Name: a name of your choice, for example StarCharge Aurora
Text description of this image
Screenshot of the Reduxi Configurator, step 1 of 2 Basic settings. Step indicator: 1 Basic settings (active), 2 Communication channel (grey). Form Basic settings: Device type (required): EV charger; Type (required): OCPP 1.6 - JSON; Name (required): StarCharge Aurora. Buttons: Back (left), Next (right, dark).
8.2 Communication settings
The second step sets the communication channel for OCPP. Define the Device identifier. It must be the same ID as the ChargePoint ID on the charging station. The Reduxi Controller generates the URL for OCPP JSON 1.6 automatically. Add /Device ID at the end of this URL.
| Parameter | Value |
|---|---|
| Device identifier | Same as the ChargePoint ID on the charging station |
| Controller OCPP JSON 1.6 URL | Generated by the controller. Add /Device ID at the end. Example: ws://192.168.1.200/ocpp/1.6/json/my_station_ID1
|
Text description of this image
Screenshot of the Reduxi Configurator, step 2 of 2 Communication channel (step 1 Basic settings, step 2 Communication channel). Form Communication channel and device configuration, note: There are no available connections. Fields: Device identifier (required): my_staion_ID1 [as shown], marked with a cyan rectangle; Connector (required): 1; Charger type (required): AC; Energy counter: Default; Allocate power to EVSE when EV is not connected to EVSE: Default; Per phase max. current (required): Manual override; Per phase max. current manual override: 32, hint: In effect when manual override is selected; Forward communication to backend OCPP server: empty; Override authentication username for backend OCPP server: empty; Override authentication password for backend OCPP server: empty; Forward measurements to backend OCPP server once every: empty dropdown; Allow new charging session: Always. Last field, marked with a cyan rectangle: Controller OCPP (JSON 1.6) URL: ws://10.0.0.185/ocpp/1.6/json, with a copy icon at the right. Buttons: Back (left), Done (right, dark).
8.3 Test communication
Click Test communication at the lower right, below the communication channel fields. It checks the OCPP communication and saves nothing. If the test succeeds, click Done: only Done creates the device.
The test returns one of three results:
Case 1: Communication is working properly.
Text description of this image
Screenshot of a German-language Testkommunikation dialog in the Reduxi Configurator, with a close X. Green text in a white box: Successful readout from device. Active power: 0.0 W; Current L1: 0.0 A; Current L2: 0.0 A; Current L3: 0.0 A; Max. active power: 0.0 W; Min. active power: 0.0 W; State name: UNKNOWN null. Additional parameter - CURRENT_PHASE_MAX: 0.0; Additional parameter - IMPORT_ENERGY_ACTIVE_SESSION: 0.0. Dark button at bottom right: Schließen [Close].
Case 2: Unable to communicate with device 1, ID of device is not set or is different.
Text description of this image
Screenshot of a German-language Testkommunikation dialog in the Reduxi Configurator, with a close X. First box, red text: Keine Kommunikation mit dem Gerät möglich. [No communication with the device possible.] Second box, red text: Number of devices found on OCPP - JSON 1.6: 1; Device identifier: 0000241500065. Dark button at bottom right: Schließen [Close].
The ID you assigned in the Reduxi Controller does not exactly match the ID of the charging station. Check both and try again.
Case 3: No device with OCPP 1.6 communication is found.
Text description of this image
Screenshot of a German-language Test communication dialog in the Reduxi Configurator, title: Testkommunikation, with a close X. Message in red text in a white box: Keine Kommunikation mit dem Gerät möglich. [No communication with the device possible.] Dark button at bottom right: Schließen [Close].
The settings on the charging station were not saved, the Aurora has no internet connection, or the path to the Reduxi Controller is incorrect. Check the internet connection of the charger, the wiring (if present) and the settings.
9 Check the readings
9.1 Last measurements
After communication is established, check the readings of the new device under Devices – Last measurements in the Reduxi Configurator.
9.2 Enable control by Reduxi
For advanced charger control, integrate the device into the Reduxi strategy. Under Devices in the Reduxi Configurator, set the control type to AUTO. Only then do strategy commands affect the charger.
To use dynamic prices and dynamic tariffs, define a strategy as described in Strategies for Reduxi controller.
After the device is added, you can also monitor and control it in the Reduxi cloud application.
✓ Summary
Preparation (Points 1–3): Read the manual, collect the equipment and install the wallbox.
StarCharge Aurora (Points 4–6): Log in to the web interface, enter the ChargePoint ID and the OCPP data of the controller, then set up 4G, Wi‑Fi or LAN.
Add to Reduxi (Points 7–8): Log in, add an OCPP 1.6 - JSON device with the ChargePoint ID as Device identifier, run Test communication and click Done.
Go live (Point 9): Check the last measurements and set the control type to AUTO.
→ Common issues
| Issue | Solution |
|---|---|
| Test communication: ID of device is not set or is different | The Device identifier in Reduxi must match the ChargePoint ID of the charger exactly (Point 5, Point 8.2). |
| Test communication: no device with OCPP 1.6 communication is found | Check that the settings are saved on the charger, that the Aurora has an internet connection and that the path to the controller is correct (Points 5 and 6). |
| Web interface of the charger does not open | Set the IP address of your PC to 192.168.88.1–200 and open 192.168.88.206 (Point 4.1). |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
