Reduxi Gateway setup with Reduxi app
Set up the Reduxi Gateway with the Reduxi app: log in, scan the QR code, connect to the Gateway hotspot and select your device.
1 Install the Reduxi app
Install the Reduxi app on your mobile phone.
2 Log in or register an account in the Reduxi app
Log in to the Reduxi app, or register a new account.

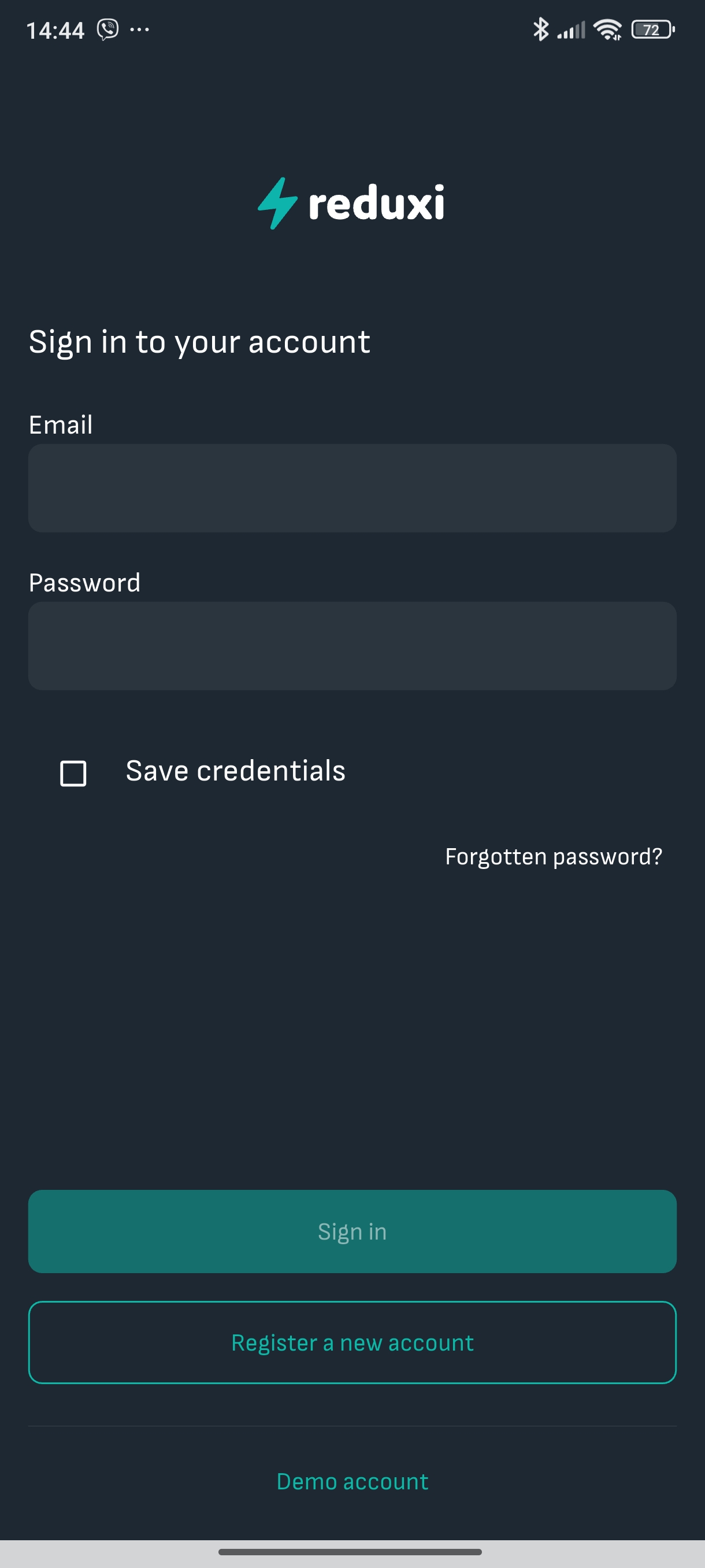

Text description of this image
Screenshot of the sign-in screen of a mobile app, dark blue background. Status bar: time 14:44, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 72. The reduxi logo is at the top. Heading: Sign in to your account. Fields: Email (empty); Password (empty). Checkbox: Save credentials (not ticked). Link: Forgotten password?. Buttons: Sign in (dimmed green, disabled); Register a new account (green outline). Below a divider: link text Demo account. A grey gesture bar is at the bottom.
Text description of this image

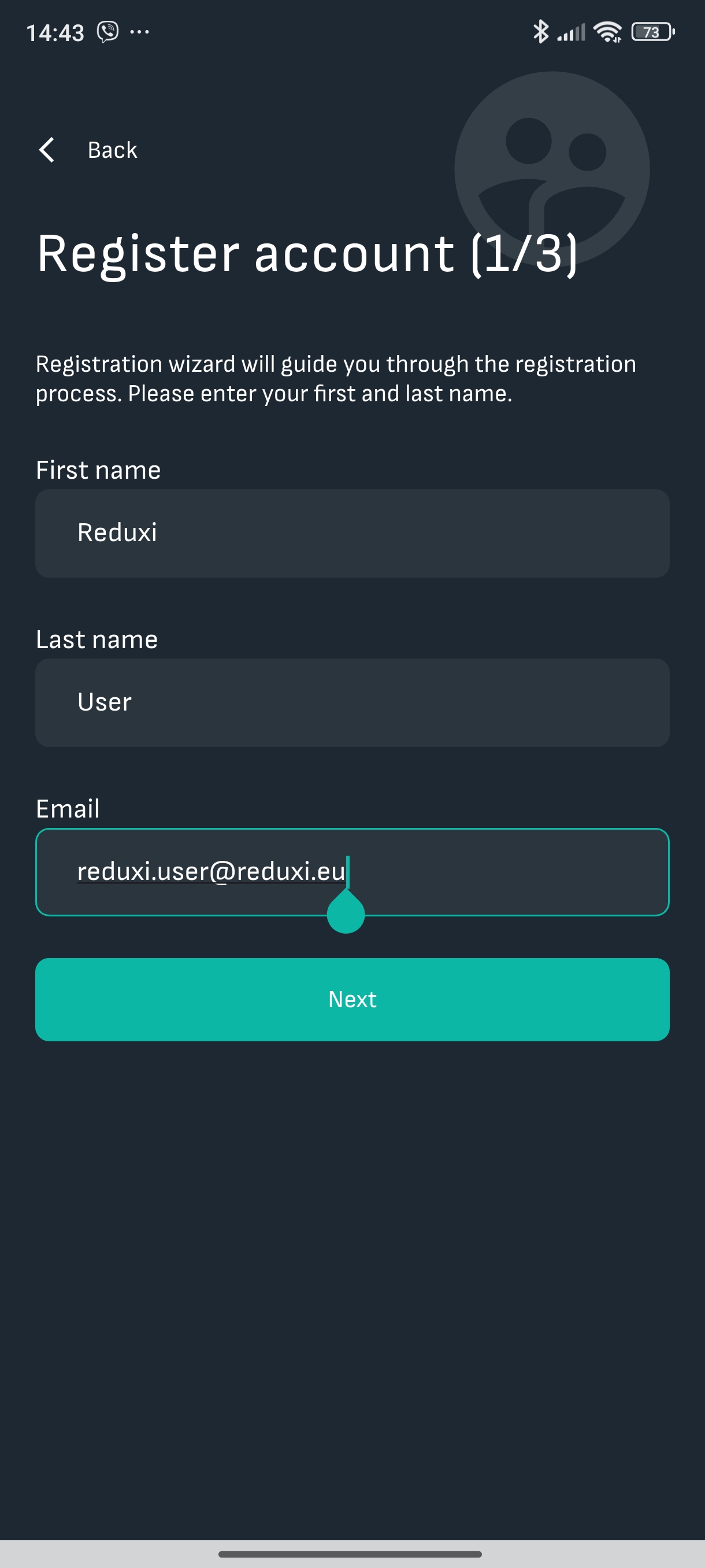

Screenshot of the Register account (1/3) screen of a mobile app, dark blue background. Status bar: time 14:43, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 73. Top: Back with a left arrow; heading Register account (1/3); a faint round icon with two dots in the background. Text: Registration wizard will guide you through the registration process. Please enter your first and last name. Fields: First name: Reduxi; Last name: User; Email: reduxi.user@reduxi.eu (field focused with a green outline, text cursor and cursor handle visible). Below: a solid green button Next. A grey gesture bar is at the bottom.
Text description of this image

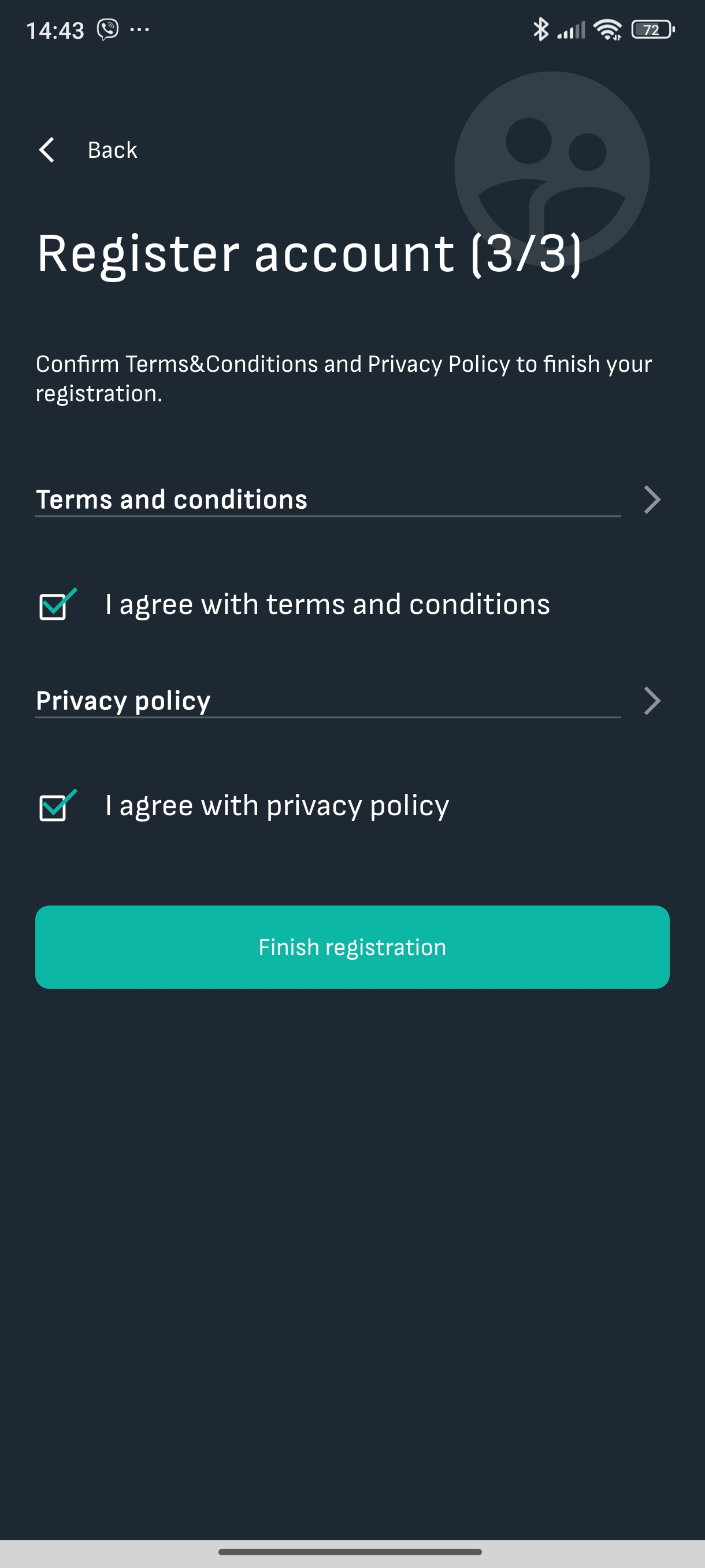

Screenshot of the Register account (3/3) screen of a mobile app, dark blue background. Status bar: time 14:43, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 72. Top: Back with a left arrow; heading Register account (3/3); a faint round face icon in the background. Text: Confirm Terms&Conditions and Privacy Policy to finish your registration. Entries with right arrows: Terms and conditions; Privacy policy. Checkboxes, both ticked: I agree with terms and conditions; I agree with privacy policy. Below: a solid green button Finish registration. A grey gesture bar is at the bottom.

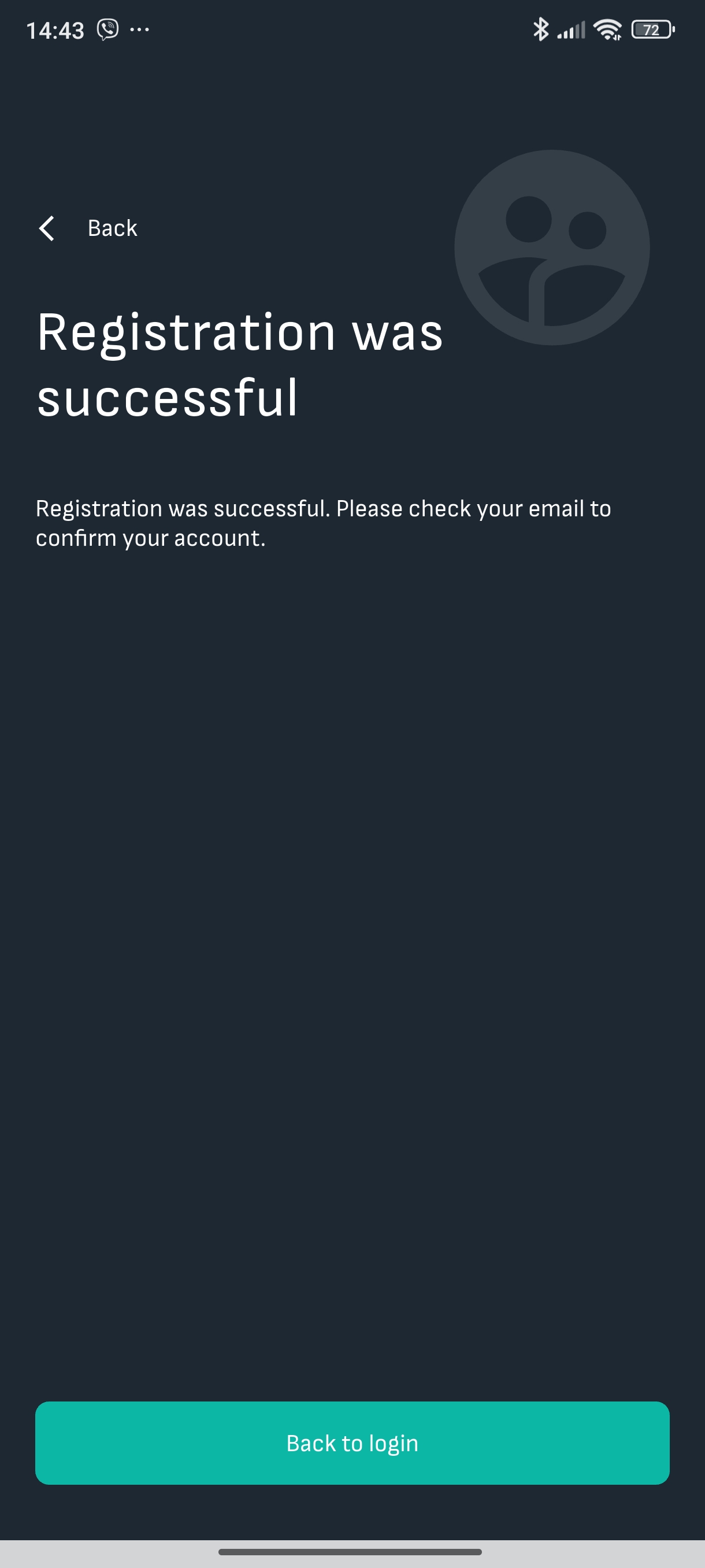

Text description of this image
Screenshot of the registration result screen of a mobile app, dark blue background. Status bar: time 14:43, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 72. Top: Back with a left arrow; heading Registration was successful; a faint round icon with two person silhouettes in the background. Text: Registration was successful. Please check your email to confirm your account. At the bottom: a solid green button Back to login. A grey gesture bar is at the very bottom.
After you confirm your e-mail, log in to the app.
3 Choose the location and add your device
3.1 Add the location
Tap the Menu icon (top left) and choose Add location.
Text description of this image

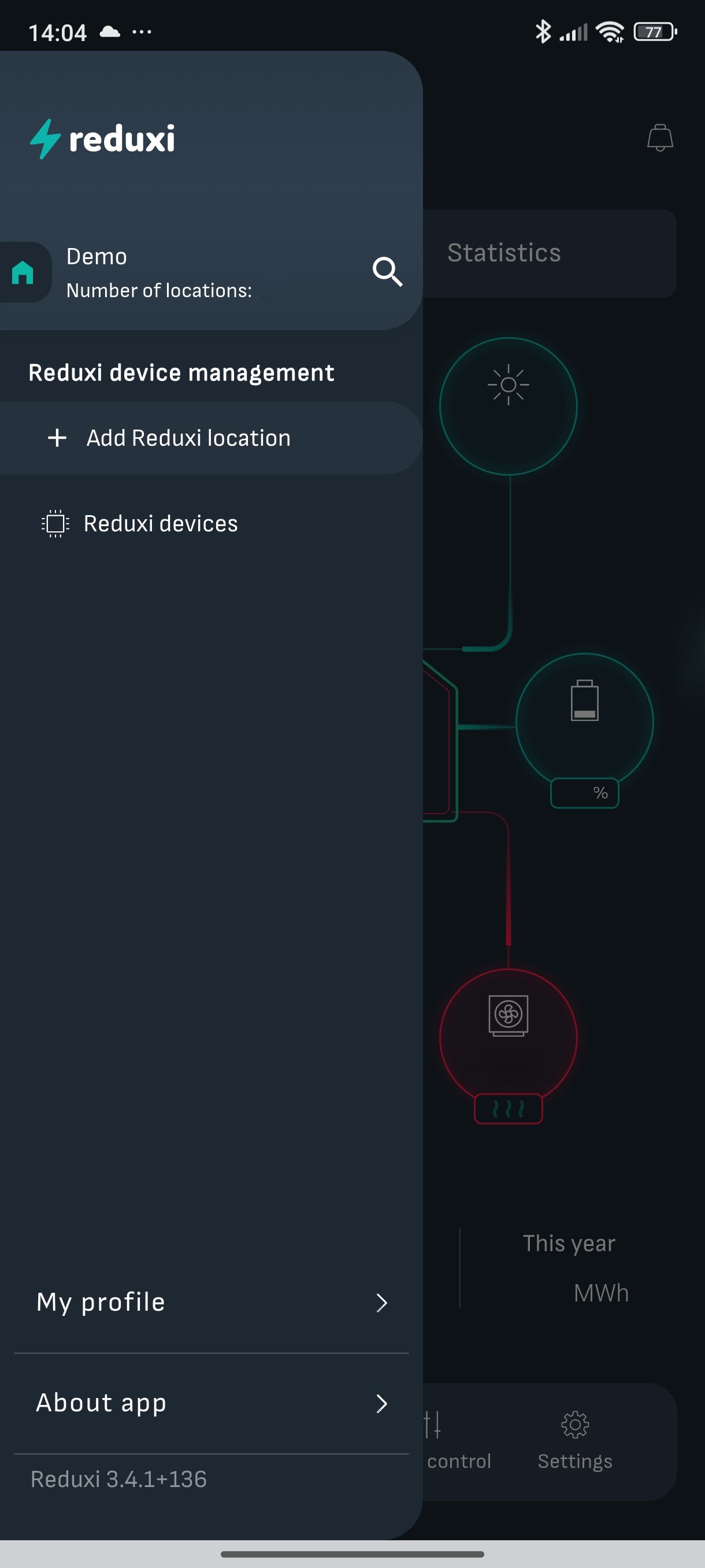

Screenshot of the side menu of a mobile app, dark theme, open over a dimmed dashboard. Status bar: time 14:04, cloud icon, Bluetooth, signal bars, Wi-Fi, battery 77. Menu header: reduxi logo; location card with a green home icon, name Demo, text Number of locations: (value not visible), and a magnifying glass icon. Section Reduxi device management: + Add Reduxi location (highlighted with a lighter rounded background); Reduxi devices (chip icon). Lower entries with right arrows: My profile; About app. Version text: Reduxi 3.4.1+136. Dimmed dashboard on the right: a bell icon, tab Statistics, energy-flow nodes with a sun, a battery, a fan unit with a heat label and a percent label, a This year value in MWh, and bottom navigation entries ending with control and Settings. A grey gesture bar is at the bottom.
Choose Configure Gateway.
Text description of this image
Screenshot of a phone screen in the Reduxi app, dark theme, titled "Configure new Reduxi device" (a tall image). Status bar: time 14:04, Teams icon, Bluetooth, mobile signal, Wi-Fi, battery 77. Top left: back arrow with "Back". A faded chip icon sits in the background top right. Below, three selectable cards, each with a grey product picture above the text. Card 1: black flat square box (controller); heading "Configure controller"; text "Configure your Reduxi Controller. This will enable you to control electric production and consumption in your home, managing devices and much more." Card 2: small dark grey box with two mounting ears with holes; heading "Configure P1 WiFi"; text "Configure your P1 WiFi device. This will enable you to monitor your energy consumption in real time. Only do this, if you have not connected P1 to your controller locally." Card 3: black flat square box (gateway); heading "Configure gateway"; text "Configure your Reduxi gateway's network configuration. This will enable you to connect your gateway to. controller and monitor your energy consumption in real time.". At the bottom the grey phone navigation bar with a dark home bar, then white space.
3.2 Scan the QR code
Scan the QR code on the controller.
Text description of this image

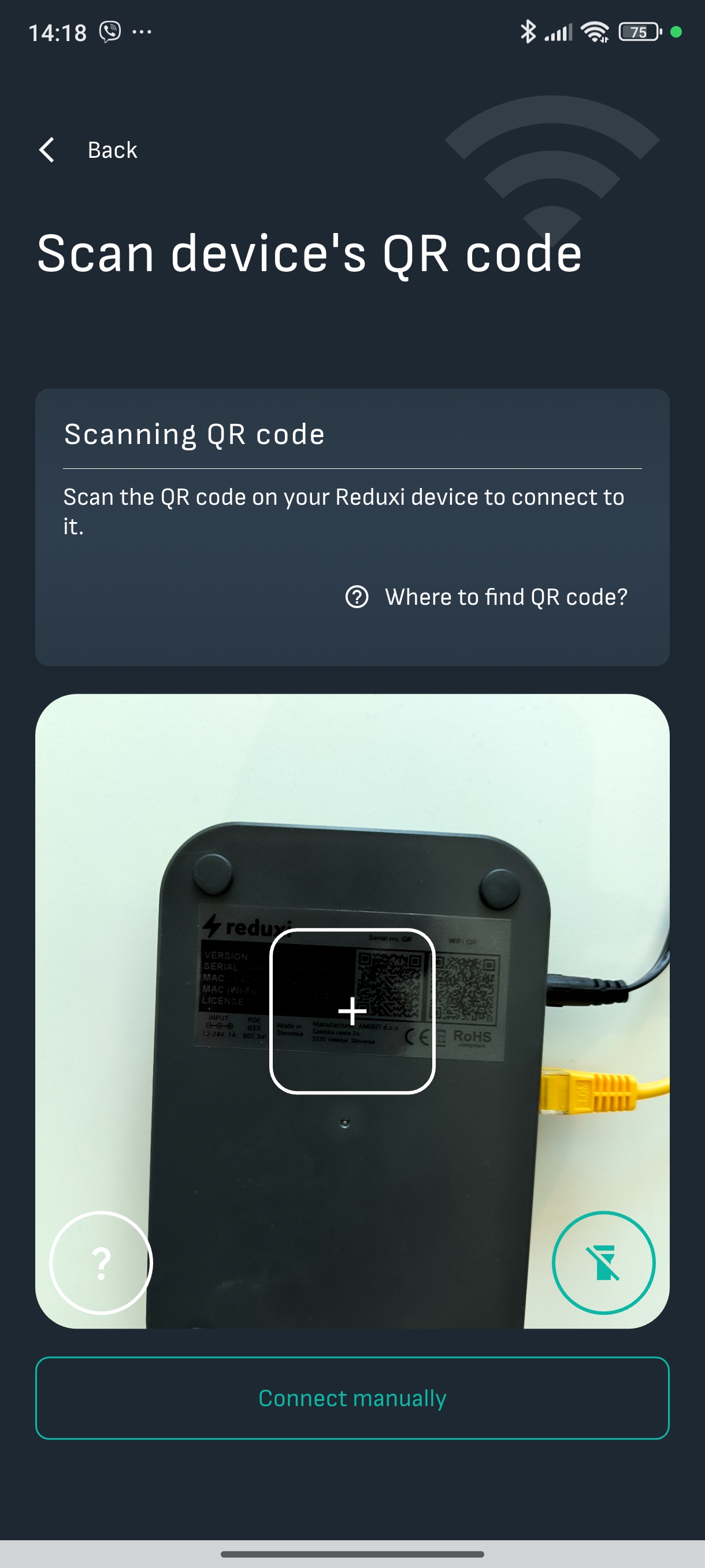

Screenshot of the Scan device's QR code screen of a mobile app, dark blue background. Status bar: time 14:18, Viber icon, Bluetooth, signal bars, Wi-Fi, battery 75, green dot. Top: Back with a left arrow; large heading Scan device's QR code; a faint Wi-Fi symbol in the background. Card titled Scanning QR code with the text: Scan the QR code on your Reduxi device to connect to it. Link: (?) Where to find QR code?. Below the card, the camera view with rounded corners shows the underside of a dark grey device with two round feet, a black cable on the right and a yellow Ethernet cable at the bottom right. The device label shows the reduxi logo, the fields VERSION, SERIAL, MAC, MAC (Wi-Fi), LICENSE (values hidden by a black area), two QR codes labelled Serial no. QR and WiFi QR, INPUT 12-24V, 1A, POE IEEE 802.3at, Made in Slovenia, Manufacturer: AMIBIT d.o.o., Šaleška cesta 2a, 3320 Velenje, Slovenia, a CE mark and RoHS compliant. A white rounded square scan frame with a plus sign sits over the label and the first QR code. In the camera view, a round white button with a question mark is at the bottom left and a round green button with a crossed-out flashlight icon is at the bottom right. Below the camera view: button Connect manually (green outline). A grey gesture bar is at the bottom.
3.3 Connect to the Gateway hotspot
The app connects to the Wi‑Fi hotspot of the Gateway. Confirm the connection.
Text description of this image

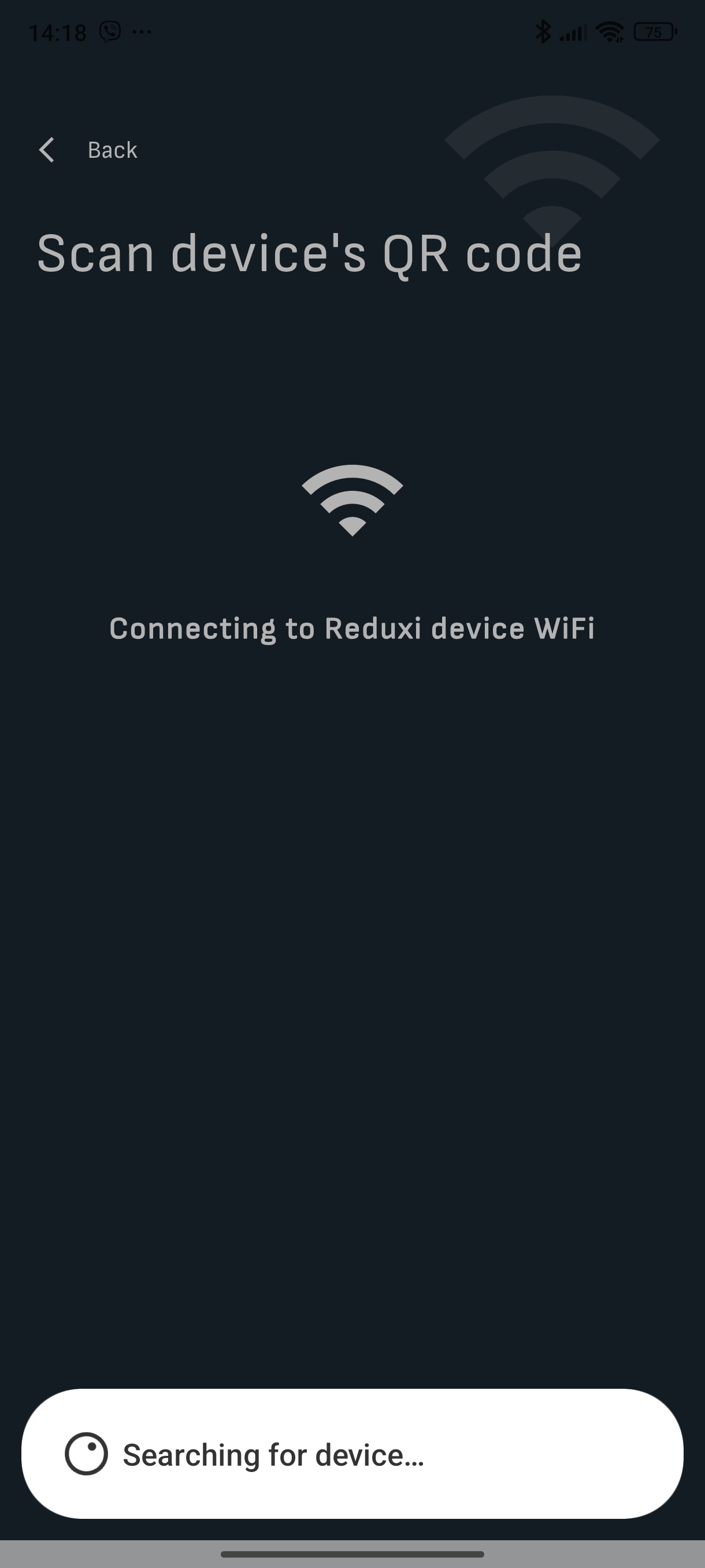

Screenshot of a phone screen in the Reduxi app, dimmed with a dark overlay (a tall image). Status bar: time 14:18, Viber icon, Bluetooth, mobile signal, Wi-Fi, battery 75. Top left: back arrow with "Back". A large faded Wi-Fi symbol sits in the background top right. Heading: "Scan device's QR code". Below it, in the middle of the screen, a grey Wi-Fi symbol with the text "Connecting to Reduxi device WiFi". The lower part is a mostly empty dark area. Near the bottom a white rounded pop-up with a circle icon and the text "Searching for device...". Under it the grey phone navigation bar with a dark home bar, then white space.

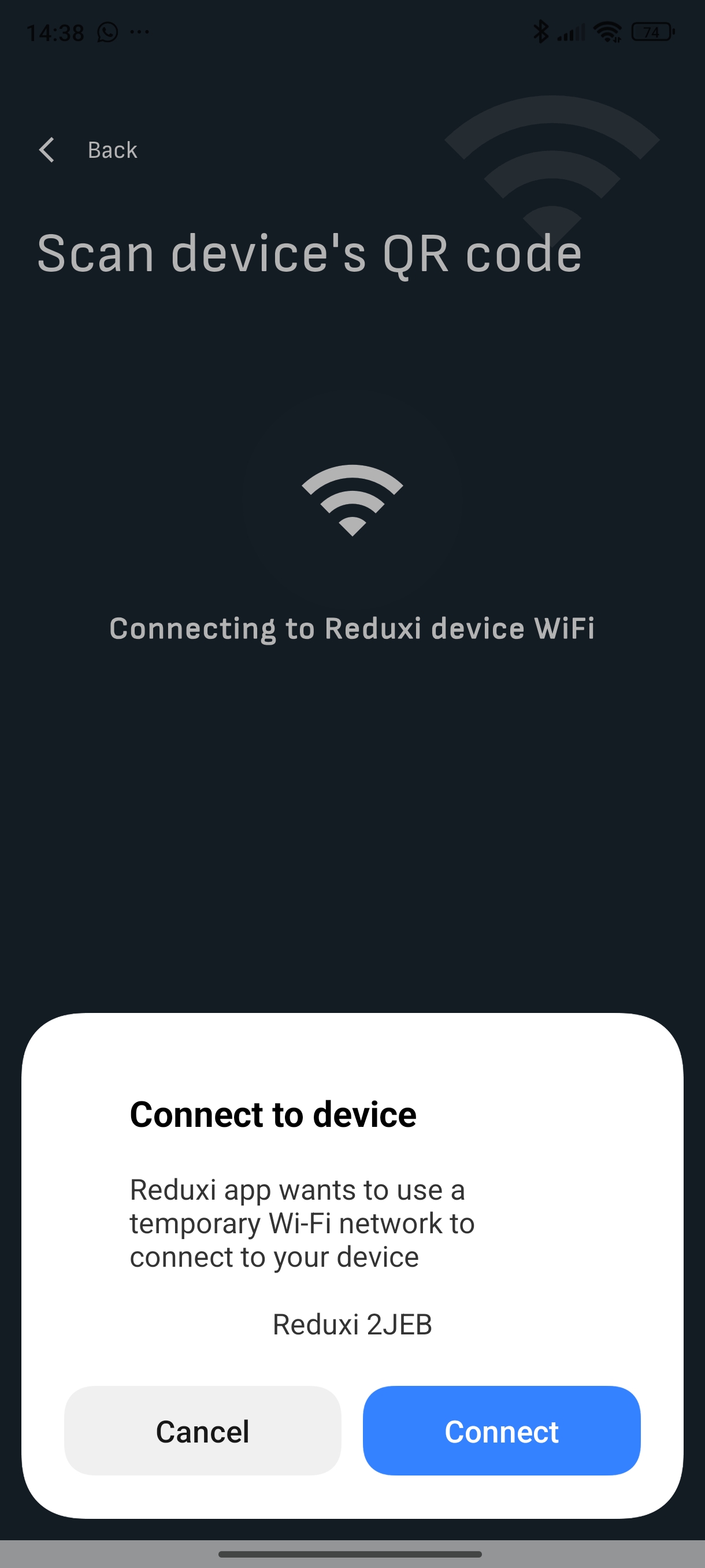

Text description of this image
Screenshot of a mobile phone screen of an app with a system dialog over a dimmed screen. Status bar (dimmed): time 14:38, WhatsApp icon, Bluetooth, signal bars, Wi-Fi, battery 74. Dimmed app screen: Back with a left arrow; heading Scan device's QR code; a faint Wi-Fi symbol; a large Wi-Fi icon with the text Connecting to Reduxi device WiFi. White rounded dialog titled Connect to device with the text: Reduxi app wants to use a temporary Wi-Fi network to connect to your device. Network name: Reduxi 2JEB. Buttons: Cancel (light grey) and Connect (blue). A grey gesture bar is at the bottom.
Text description of this image

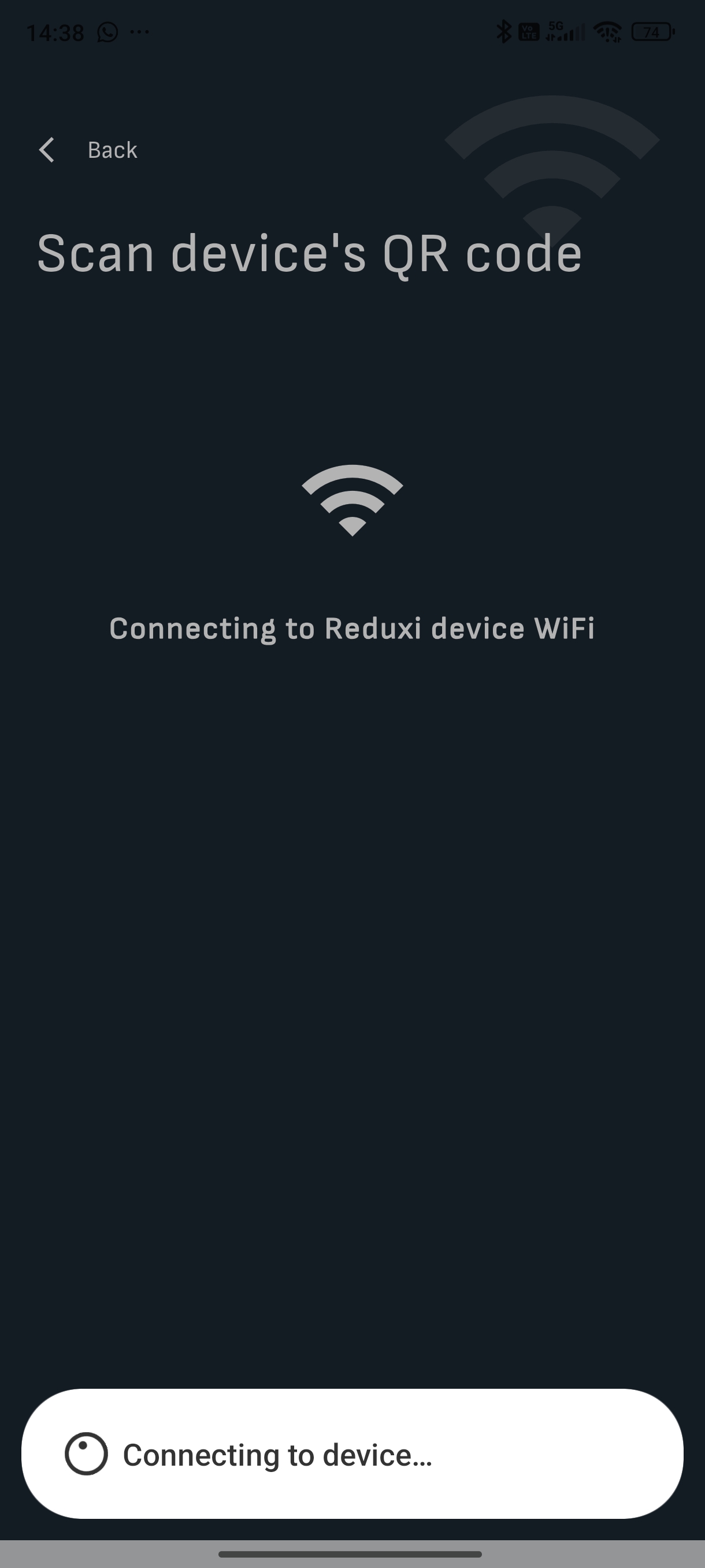

Screenshot of a mobile phone screen of an app with a system pop-up at the bottom, dimmed dark background. Status bar (dimmed): time 14:38, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 74. Dimmed app screen: Back with a left arrow; heading Scan device's QR code; a faint Wi-Fi symbol; a large Wi-Fi icon with the text Connecting to Reduxi device WiFi. At the bottom: a white rounded pop-up with a circular loading icon and the text Connecting to device.... A grey gesture bar is at the very bottom.
Text description of this image

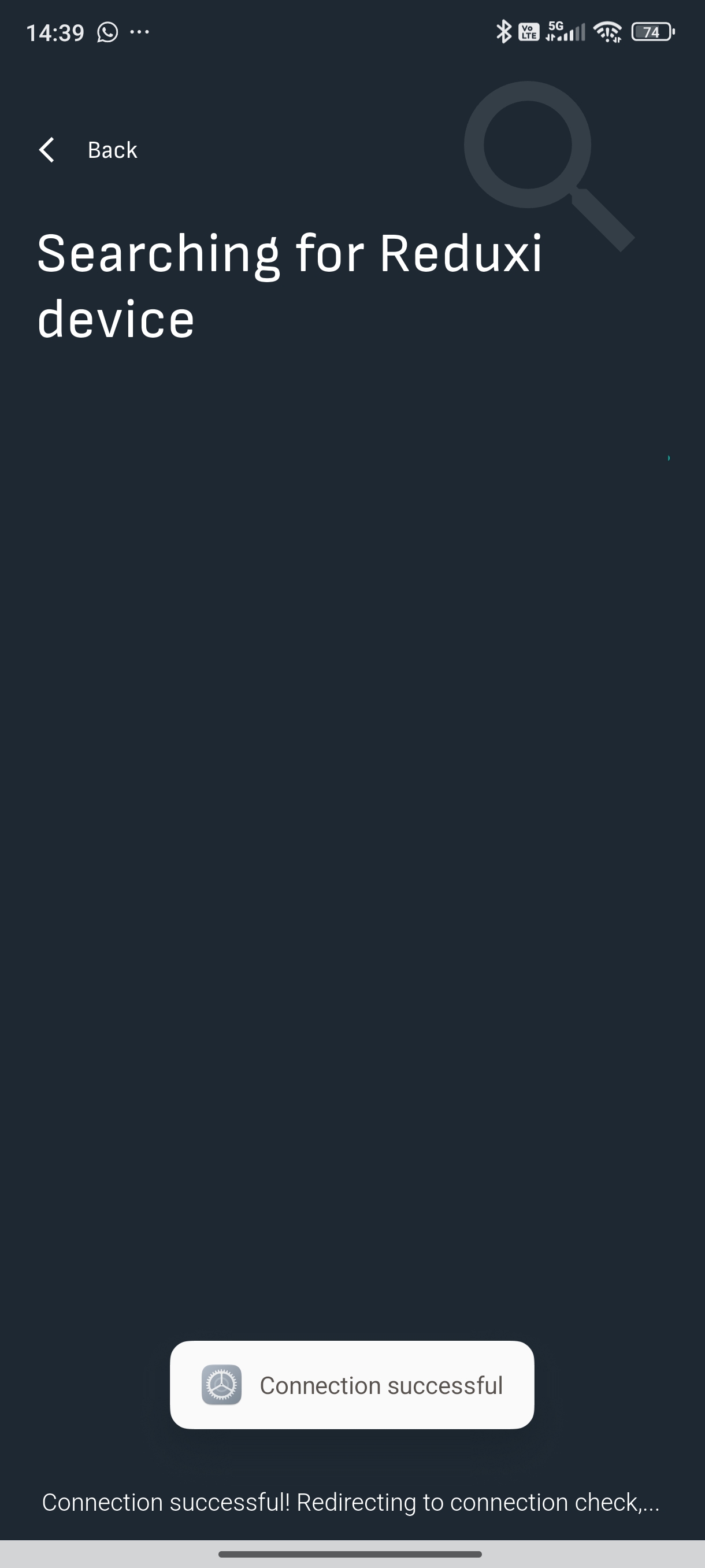

Screenshot of the Searching for Reduxi device screen of a mobile app, dark blue background, with a system message. Status bar: time 14:39, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 74. Top: Back with a left arrow; heading Searching for Reduxi device; a faint magnifying glass icon in the background. The middle of the screen is empty. In the lower part: a white rounded pop-up with a grey settings gear icon and the text Connection successful. Below it, on the dark background, a system message: Connection successful! Redirecting to connection check,... A grey gesture bar is at the bottom.
3.4 Select your device
Select your Reduxi device. If the app offers more than one device, check the S/N on the device label.
Text description of this image

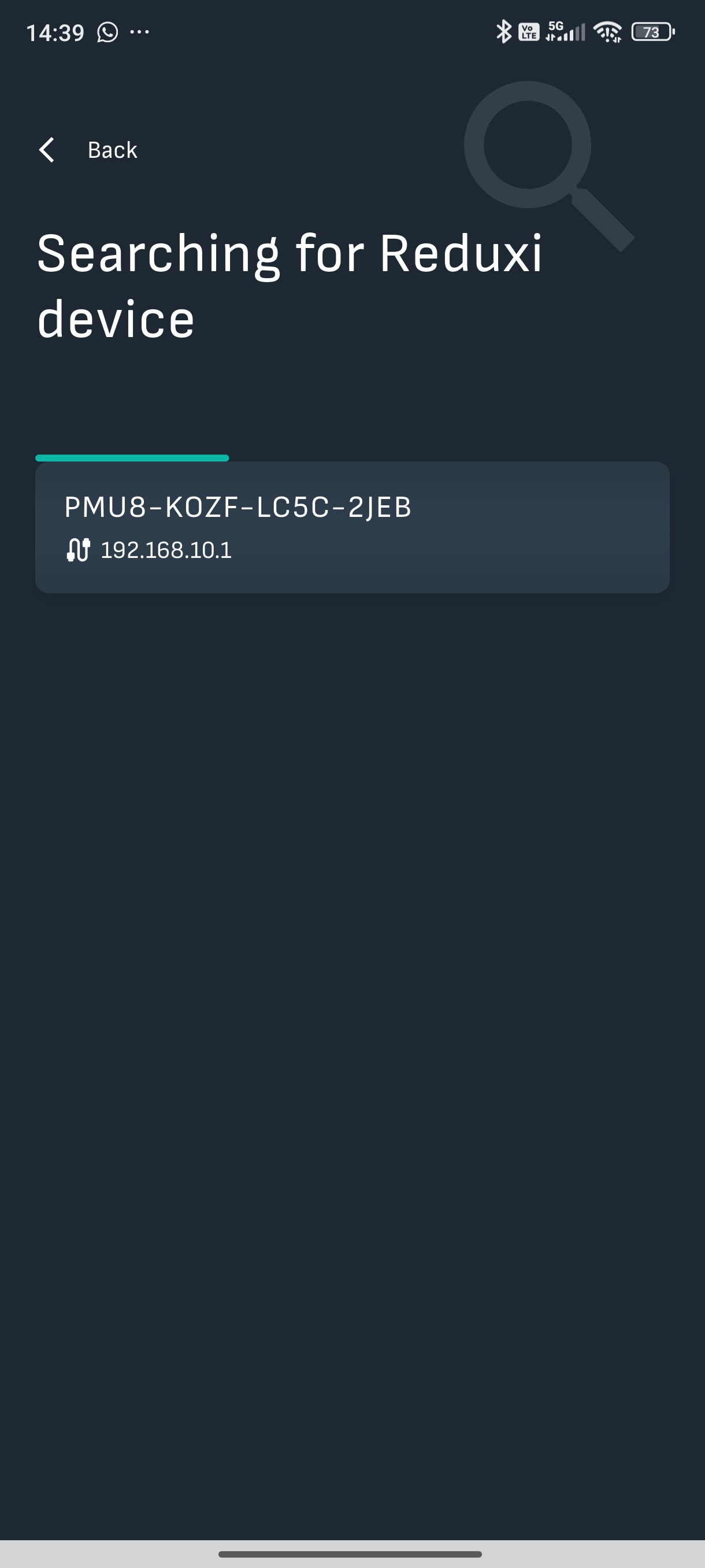

Screenshot of the Searching for Reduxi device screen of a mobile app, dark blue background. Status bar: time 14:39, WhatsApp icon, Bluetooth, VoLTE, 5G signal, Wi-Fi, battery 73. Top: Back with a left arrow; heading Searching for Reduxi device; a faint magnifying glass icon in the background. Below: one card with a short green progress bar on its upper edge, the device identifier PMU8-KOZF-LC5C-2JEB and, with a cable icon, the address 192.168.10.1. The rest of the screen is empty. A grey gesture bar is at the bottom.
Continue according to the instructions in the app.
✓ Summary
Install and log in (Points 1–2): Install the Reduxi app. Log in or register an account and confirm your e-mail.
Add the location (Points 3.1–3.2): Choose Add location and Configure Gateway. Scan the QR code on the controller.
Connect the device (Points 3.3–3.4): Confirm the connection to the Gateway hotspot. Select your Reduxi device by the S/N on the label.
Finish (Point 3.4): Continue according to the instructions in the app.
→ Common issues
| Issue | Solution |
|---|---|
| More than one Reduxi device is offered in the app | Check the S/N on the device label and select the matching device. |
| Next steps after selecting the device are unclear | Continue according to the instructions in the app. |
