How to connect KEBA KeContact P30 EV charger (Modbus TCP/IP, LAN) with Reduxi controller
Connect your KEBA KeContact P30 EV charger to the Reduxi Controller via Modbus TCP/IP over LAN.
Text description of this image

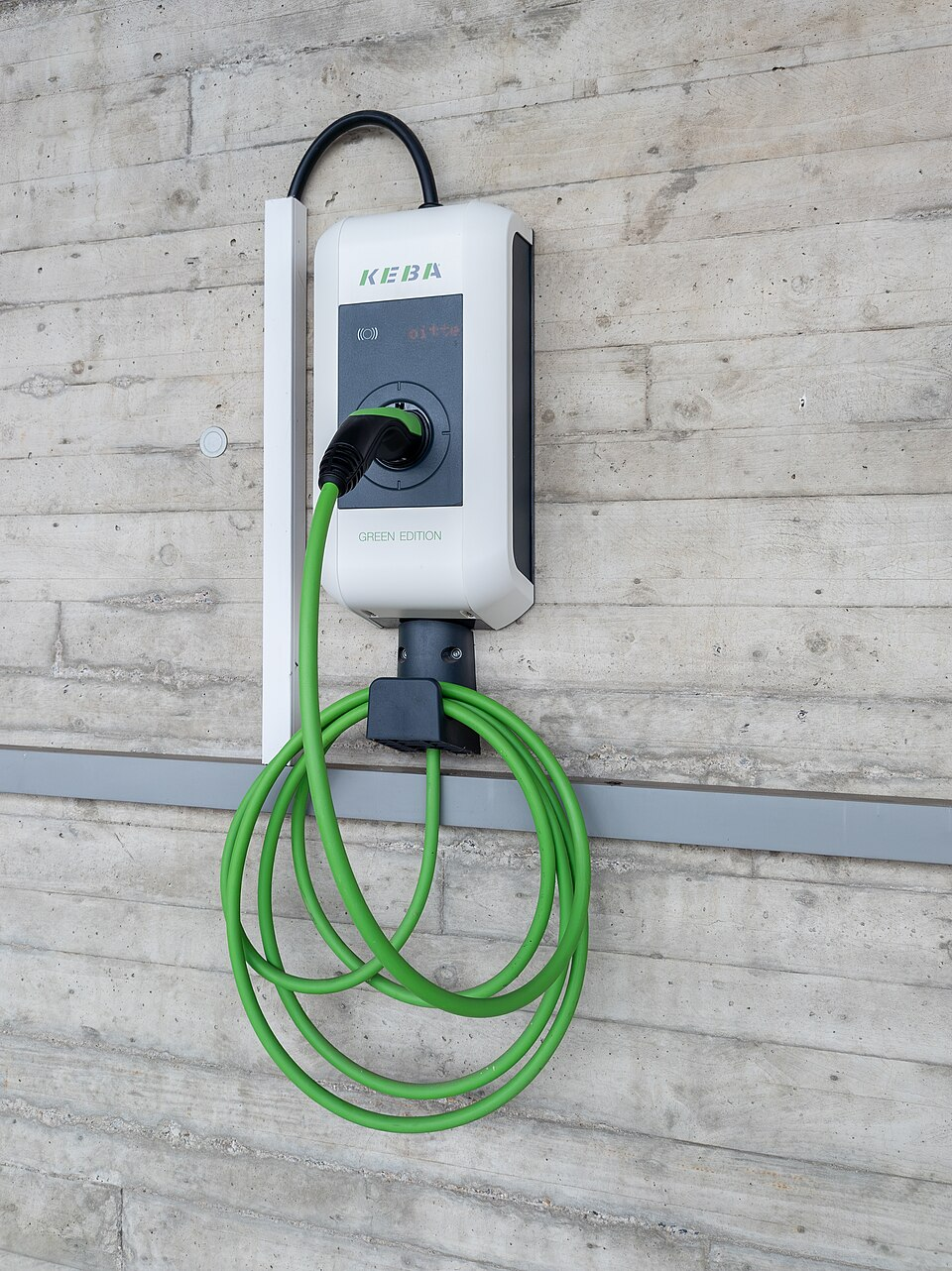

Tall photo of a white wall-mounted EV charger on a concrete wall with visible formwork board marks. The charger has the green 'KEBA' logo at the top, a dark grey front panel with an RFID symbol and a red dot-matrix display text (reads 'bitte'), a charging socket with a black-and-green plug inserted, and the text 'GREEN EDITION' below it. A green cable leads from the plug downwards; a black cable enters the top of the charger from a white cable duct on the left. In the lower part of the photo the green charging cable hangs in loops from a black holder mounted on the concrete wall above a grey horizontal strip.
1 Technical documentation
Documents from KEBA and FENECON for the KEBA KeContact P30:
- Installation and Configuration Manual: KEBA KeContact P30 x-series (FENECON) – Ethernet connection and installation steps
- KEBA downloads – Manuals, firmware and software from KEBA
- KeContact P30 x-series configuration manual – Configuration manual (PDF) from KEBA
2 Required equipment
Check these preconditions before you start:
- KEBA KeContact P30 is mechanically and electrically installed
- Charger is powered ON
- Ethernet cable
- Reduxi Controller
- Laptop or controller with Ethernet interface
- You have permission to access the charger configuration
- Laptop or tablet with internet access to configure the device in Reduxi
3 Connect the charger to the network
3.1 Ethernet physical connection
- Locate the Ethernet (RJ-45) port inside the charger.
- Connect an Ethernet cable to a network switch, directly to the controller, or directly to a service laptop.
- Check that the link LEDs are active after power-up.
Text description of this image
Manufacturer figure 'Fig. 7-16: Connection overview' showing the inside of the charger as a grey housing with a green circuit board and callout labels, followed by a legend. Callouts on the board: F1; terminals 1, 2, 3, N, PE; DSW1 and DSW2 (red DIP switch blocks); T1; LED; X1; X2; Shd; X4; X3 (RJ45 socket); SIM; USB. Legend (label ... meaning): F1 Fuse holder; 1 Power connection phase conductor 1; 2 Power connection phase conductor 2; 3 Power connection phase conductor 3; N Power connection neutral conductor; PE Power connection grounding conductor; DSW1 DIP switch; DSW2 DIP switch; T1 Service button; LED Status LED; X1 Enable input; X2 Switch contact output; Shd Shield clamp (ground for ETH); X3 Ethernet2 connection (RJ45); X4 Ethernet1 connection (LSA+ terminals); SIM SIM card slot (optional); USB USB interface.
4 Configure the charger
4.1 Access the web interface
The KEBA P30 has no display. You configure it in the integrated web interface (Web UI). You need the IP address of the charger.
Find the IP address (DHCP):
- Set the DIP switch for DHCP to ON (factory default).
- Power on the charger.
- The charger requests an IP address from the DHCP server of the network.
- Find the assigned IP address with one of these methods: router DHCP lease list, network scan tool, KEBA service tool (if available).
Log in to the Web UI:
- Open a web browser.
- Enter the IP address of the charger:
http://<charger-ip-address> - Log in with the administrator credentials.
Text description of this image
Image of a printed label titled 'Configuration Information' in a rounded frame. Rows (label: value): Ethernet MAC; WLAN Hotspot IP Address; Default SSID; Default Hotspot password; WebUI default username; WebUI default password; Password recovery.
4.2 Ethernet IP configuration
In the Web UI, go to Network → Ethernet. The current IP configuration is displayed.
Text description of this image
Screenshot of the KEBA Web UI, page 'Overview', with the KEBA logo at the top and the date/time at top left. Menu bar with entries: Status (green, selected, with drop-down), Charging Sessions, RFID Cards, Charging Network, System (drop-down), Configuration (drop-down); the menu bar is framed in grey with a black badge '1'. Four icons at the top right are marked with a black badge '2'. Overview table with columns Type, Serial No, IP Address (blue links), MAC Address, State, and an 'Actions' button per row; search box above. Rows: KeContact M20/P30 and three KeContact P20/P30 devices, all with state 'Idle'; the IP addresses are in the range 192.168.42.x (last numbers: 42, 129, 122, 144); serial numbers and MAC addresses are small and partly legible. Pagination shows Previous, 1, Next. Section 'Network Connection': table with IP Address 192.168.42.1 and State: LAN: ONLINE (green); WAN: OFFLINE (red); Mobile Communications: INACTIVE; WLAN: INACTIVE; WLAN Access Point: INACTIVE (grey). Section 'Backend': URL, State: Not Reachable (red), Last Heartbeat: N/A.
If you need a fixed IP address:
- Select IP configuration mode: Static.
- Enter the parameters: IP address (example
192.168.1.50), subnet mask (example255.255.255.0) and default gateway (if required). - Save the settings.
- Restart the charger.
- Open the Web UI with the new IP address.
4.3 Enable Modbus TCP
- In the Web UI, go to Communication settings.
- Enable the required TCP/IP communication interface: Modbus TCP (if the controller communicates via Modbus).
- Disable unused communication interfaces.
- Save the settings.
- Restart the charger.
5 Log in to the Reduxi web interface
You can open the Reduxi web interface in two ways:
Text description of this image
Screenshot of three Reduxi mobile app screens side by side, with cyan boxes and number badges 2 to 4. Left screen (dashboard, dark theme): menu icon at top left marked with a box and badge 2; 'reduxi' logo; tabs 'Real time data' (active) and 'Statistics'; price 5.79 € and temperature 3.2 °C; energy flow diagram with a house in the centre (-1.25 kW) and icons with values 69.0 W, 1.3 kW, 1.1 kW (red ring), -165.0 W with 97 % (red ring) and 0.0 W values at the bottom; tabs 'Power' and 'Energy'; bottom navigation: Dashboard, Diagnostics, Device control, Settings. Middle screen (side menu): 'reduxi' logo, 'Number of locations: 1233', heading 'Reduxi device management', entries '+ Add Reduxi location' and 'Reduxi devices' (marked with a box and badge 3), then 'My profile' and 'About app'. Right screen (device page): Back; picture of a black Reduxi controller with two Ethernet ports; status 'Connected'; card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'; card 'Connect to configurator': 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' with button 'Activate tunnel connection' (marked with a box and badge 4); card 'Unit details' with field 'Unit ID'.
Text description of this image
Screenshot made of two parts side by side. Left part: Reduxi mobile app screen on a dark background. Top: Back button; picture of a black Reduxi controller with two Ethernet ports and a terminal block; status 'Connected' with a Wi-Fi icon. Card 'Update available': 'New update is available for your Reduxi device.' with button 'Download and install update'. Card 'Connect to configurator' with a key icon: 'Tunnel connection enables remote access to your Reduxi configurator, without need to be connected to the same local network.' and button 'Open configurator', marked with a cyan box and number badge 5. Below: card 'Unit details' with a field 'Unit ID' (value not visible). Right part: Reduxi Configurator opened in a browser, marked with a cyan frame and number badge 6. Header: back arrow, 'Tunnel connection', reload icon. Left sidebar with icons (lightning, chip, lightning bolt, bar chart, gear). Page 'Home' with a green link icon. Green notice: 'New patch available. Click here to apply.' with a close X. Time 09:12:56. Energy flow diagram with a house in the centre (1.700 kW) and icons for grid (0.000 kW), solar (1.700 kW), battery (green, 0.000 kW and 0.800 kW), a device at left (0.900 kW), electric vehicle and a charger or device at bottom. Label 'Energy manager' at the bottom.
http://reduxi.local. You can find the controller's IP address in your router's device list or in the Reduxi app under Reduxi devices.admin · Password: admin (factory default)Text description of this image
Screenshot of the Reduxi Configurator login page in a Chrome browser window. The address bar shows 'Not secure' and 'reduxi.local'; the address bar is marked with a cyan box and an enlarged copy of it (cyan box, text 'Not secure reduxi.local') is shown at the left, connected by a cyan line. Page background: light grey line drawing of a house with solar panels (green), a wall box, an inverter, a car and a charger. Top left: 'reduxi configurator' logo. Login box in the centre with title 'Login', a language selector (English flag, 'English'), a username field and a password field, and a dark 'Login' button.
Text description of this image
Screenshot of the Reduxi Configurator web interface after login, light theme. Top left: 'reduxi configurator' logo. Header bar: 'Home' at left, green 'Connected' status at top right. Left sidebar: expanded section 'Devices' with a list of entries, then collapsed sections 'Manager' and 'Configuration' and 'Settings'. Main area: energy flow diagram. House in the centre with ring, value 24.20 kW. Grid icon at top left, 24.20 kW (red dot on its line). Solar icon at top right, value '-'. Left icon (battery or device), 6.700 kW (green dot on its line). Right icons (battery storage and a device), values '-'. EV charger icon at bottom left, 31.00 kW. A further device icon at bottom right. Label 'Energy manager' below the house.
6 Add the charger to Reduxi
Use these steps to add a new charger or to edit an existing one.
6.1 Basic settings
Log in locally to the Reduxi Configurator on the controller (see Point 5) and click + Add device.
Text description of this image
Screenshot of the left menu of the Reduxi Configurator under the reduxi Configurator logo. Menu entries: Devices (expanded, with a minus sign) containing the button '+ Add device' (outlined); Strategies (plus sign); Utility Rate Plan; Settings (plus sign). The right side is blank white.
In the first step (basic settings), select the basic parameters of the device:
- Device type: choose the device type
- Type: choose the type
- Name: a name of your choice
Text description of this image
Screenshot of the Reduxi Configurator wizard step 1 'Basic settings' (step 2 'Communication channel' greyed). Form with all fields empty: Device type *: empty drop-down; Type *: empty drop-down (greyed); Name *: empty. Buttons: Back, Next.
Click Next.
6.2 Communication settings
Fill in the communication parameters of the charger:
| Parameter | Value |
|---|---|
| Connection | TCP/IP |
| IP | The IP address of the charger (see Point 4) |
| Port |
502 (Modbus TCP default of the KEBA KeContact P30) |
| Modbus address | The Modbus address (unit ID) set on the charger. See the KEBA documentation in Point 1. |
6.3 Test communication
Click Test communication at the bottom of the wizard. It reads the KEBA KeContact P30 once and saves nothing. If the test succeeds, click Done: only Done creates the device.
Text description of this image
Screenshot of the bottom button bar of a Reduxi Configurator page. Left: button 'Back'. Right: button 'Test communication' (marked with a cyan box) and dark button 'Done'.
Text description of this image
Screenshot of the Reduxi Configurator page 'Communication channel and device configuration'. Connection *: TCP/IP (dropdown). IP *: 192.168.50.243, with button 'Scan for IP'. Port *: 502, with button 'Test port'. Modbus unit ID *: 1. Buttons at the bottom: Back (left), Test communication and Done (right). The Done button is marked with a cyan box.
7 Check the readings
7.1 Last measurements
After communication is established, open the charger under Devices in the Reduxi Configurator and check the values as an additional test.
7.2 Enable control by Reduxi
To control the charger with Reduxi strategies, set the control type of the device to AUTO. Only then do strategy commands affect the charger.
To define a strategy, follow Strategies for Reduxi controller.
✓ Summary
Preparation (Points 1–2): Get the KEBA documents. Install and power the charger. Prepare the Ethernet cable, the Reduxi Controller and a laptop or tablet.
KEBA charger (Points 3–4): Connect the charger to the network. Find its IP address, set a static IP if needed and enable Modbus TCP in the Web UI. Restart the charger.
Add to Reduxi (Points 5–6): Log in to the Reduxi web interface. Add the device and set the communication parameters. Run Test communication, then click Done.
Go live (Point 7): Check the last measurements. Set the control type to AUTO.
→ Common issues
| Issue | Solution |
|---|---|
| Web UI is not reachable | Check that the DIP switch for DHCP is ON and the Ethernet cable is connected. Check that the link LEDs are active. Find the IP address in the router DHCP lease list (see Point 4). |
| Cannot log in to the Web UI | Use the administrator password from the label inside the charger, the commissioning sheet or the KEBA delivery documentation. |
| Test communication fails | Check that Modbus TCP is enabled under Communication settings in the Web UI and that the charger was restarted after saving. Check the IP address and port in Point 6. |
| Open configurator does not open or stays empty | The tunnel is not active yet. Wait about 30 seconds and check that the controller is online. |
Login with admin is rejected |
The password was changed during installation. Ask the installer. The Reduxi account password does not work here. |
reduxi.local does not load |
Your device is not in the same network as the controller. Use the IP address or the tunnel connection. |
| Communication test fails, device shows offline | Check reachability, IP address / port / unit ID, and that the protocol is enabled on the device. |
